ROCKER OUTER PANEL CUT AND JOIN REPLACEMENT SECTIONS

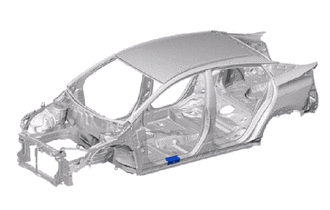

A01RG0A

  1. REMOVAL

    Symbol Meaning
    B0049EM Remove Weld Points
    B0049FU Cut and Join Location
    B0049G2 Cut Location for Supply Parts

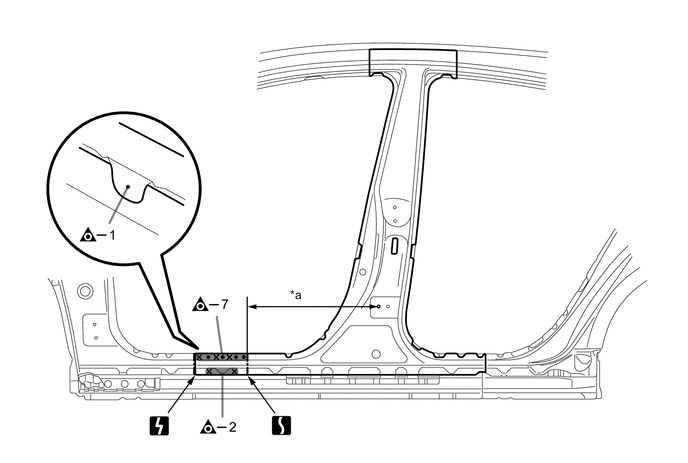

    A01RFWLC01
    *a 475 mm (18.70 in.) - -
    B0049H7 Laser Screw Welding - -
    A01RG4G

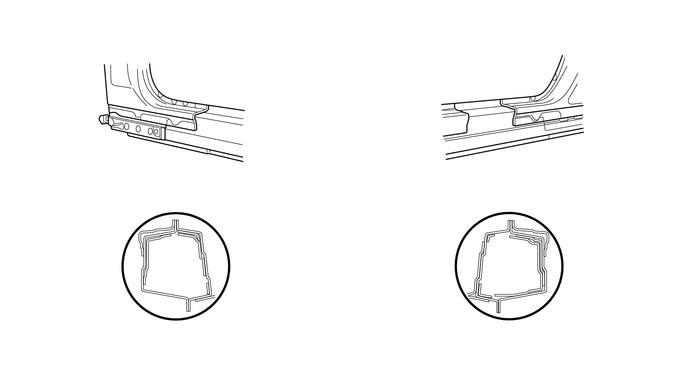

    1. When replace only the outer panel, please cut off a necessary range depending on a damage range.


      1. Carefully cut the outer panel so not to damage the reinforcement.

      2. Make sure that butt welding does not heat-affect the reinforcement when welding the outer panel.

  2. INSTALLATION

    Symbol Meaning
    B0049GS Plug Weld
    B0049HR Butt Weld

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

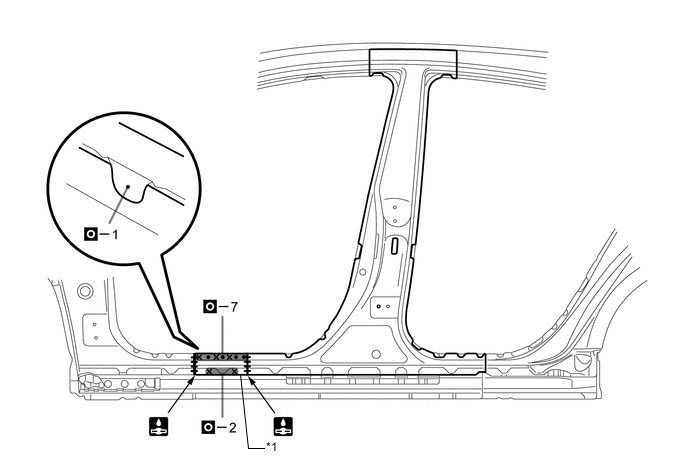

      A01RG4SC01
      *1 CENTER BODY PILLAR OUTER - -
      B0049H7 Laser Screw Welding - -

    3. After welding, apply body sealer to the corresponding parts. (See the painting/coating)

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
