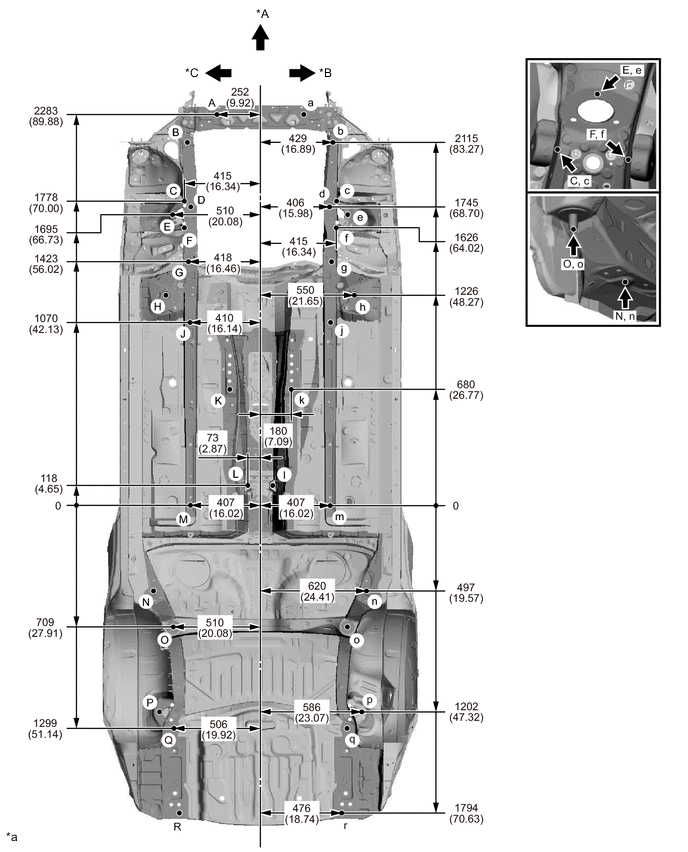

UNDER BODY TWO-DIMENSIONAL DISTANCE
Tech Tips
-
Length measurements are indicated at the points where the arrows extending from the zero point intersect the lines that extend towards the outside of the illustration from each point.
-
In cases in which only one dimension is given, left and right are symmetrical.
-
For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).
| Symbol | Name | Hole Diameter mm (in.) |
|---|---|---|
| A, a | Front Cross Member Lower Standard Hole | φ13 (0.51) |
| B, b | Front Side Member Standard Hole | φ18 (0.71) |
| C, c | Front Suspension Upper Arm Installation Hole | φ13 (0.51) |
| D, d | Front Suspension Crossmember Installation Nut | M14 (0.55) |
| E, e | Front Spring Support Installation Hole | φ13 (0.51) |
| F, f | Front Suspension Upper Arm Installation Hole | φ13 (0.51) |
| G, g | Front Suspension Crossmember Installation Nut | M16 (0.63) |
| H, h | Torque Box Standard Hole | φ25 (0.98) |
| J, j | Front Side Member Reinforcement No.5 Standard Hole | φ25 (0.98) |
| K, k | Engine Rear Support Member Installation Nut | M10 (0.39) |
| L, l | Propeller Shaft Center Bearing Support Installation Nut | M10 (0.39) |
| M, m | Front Floor Under Reinforcement Standard Hole | φ18 (0.71) |
| N, n | Rear Floor Side Member Standard Hole | φ18 (0.71) |
| O, o | Rear Suspension Crossmember Installation Nut | M14 (0.55) |
| P, p | Rear Spring Support Installation Hole | φ11 (0.43) |
| Q, q | Rear Suspension Crossmember Installation Nut | M14 (0.55) |
| R, r | Transport Hook Installation Nut | M12 (0.47) |
| Wheel Base | 2730 mm (107.48 in.) |
| Front Suspension Member Installation Area | Within +/-2.0 mm (0.079 in.) |
| Upper Arm Bracket Installation Area | Within +/-1.5 mm (0.059 in.) |
| Rear Suspension Member Installation Area | Within +/-1.5 mm (0.059 in.) |
| *A | FRONT | *B | LH |
| *C | RH | - | - |
| *a | mm (in.) |
- | - |

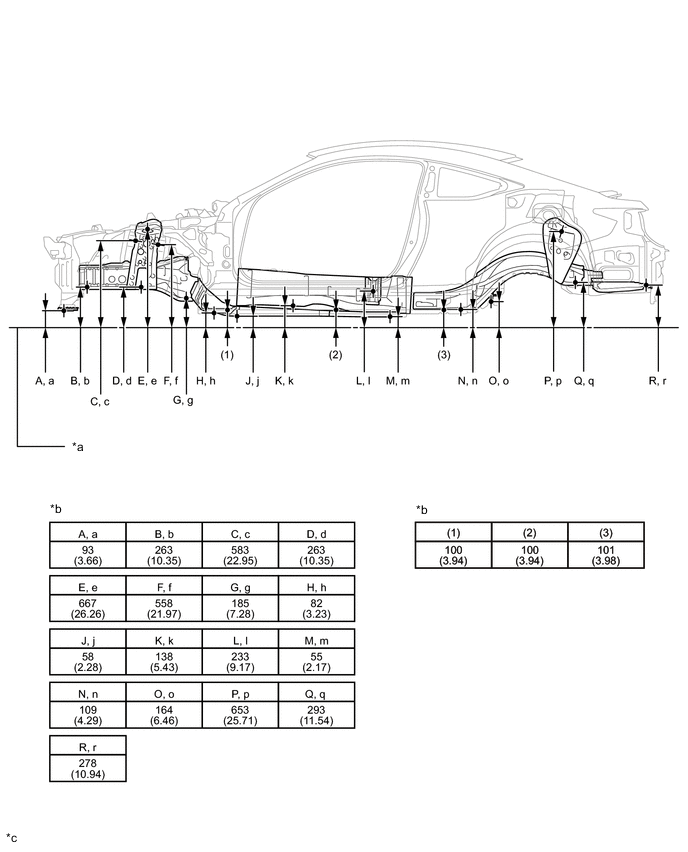

| *a | Imaginary Datum Line | *b | Height from Imaginary Datum Line |
| *c | mm (in.) |
- | - |
