ABOUT THIS VEHICLE STRUCTURAL OUTLINE


  1. A01F5TVC01
    B0071W0 1500 MPa Ultra High Strength Steel A01F5Q9 980 MPa Ultra High Strength Steel
    B0071X6 590 MPa High Strength Steel B0071X0 440 MPa High Strength Steel
    A01F5YM 340 MPa High Strength Steel A01F5S2 Aluminium

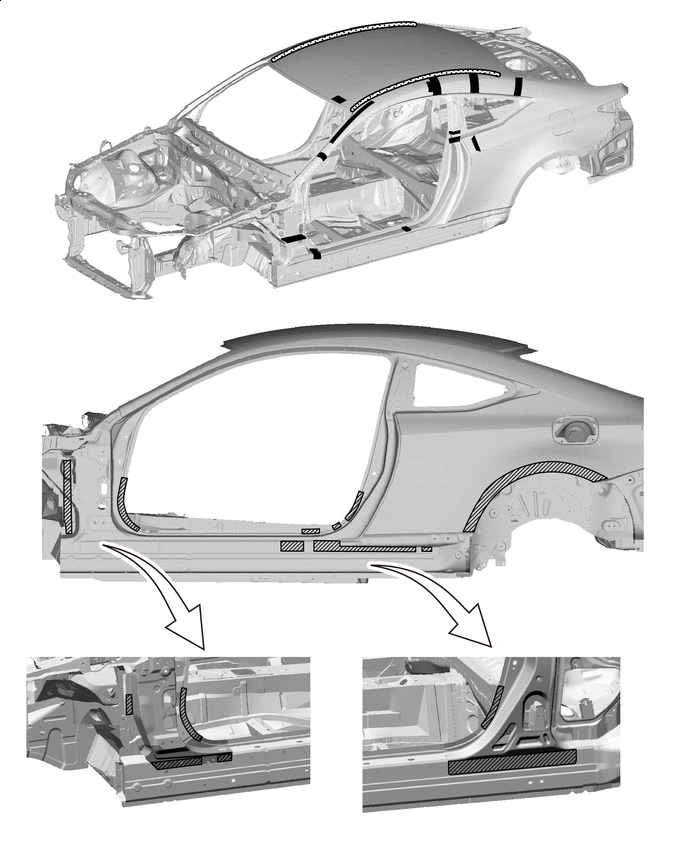

    A01F5PPC01
    B0071W0 Foamed Sealing Material Application Areas (See the painting/coating) A01F5YM Adhesive Application Area
    A01F5S2 Laser Brazing

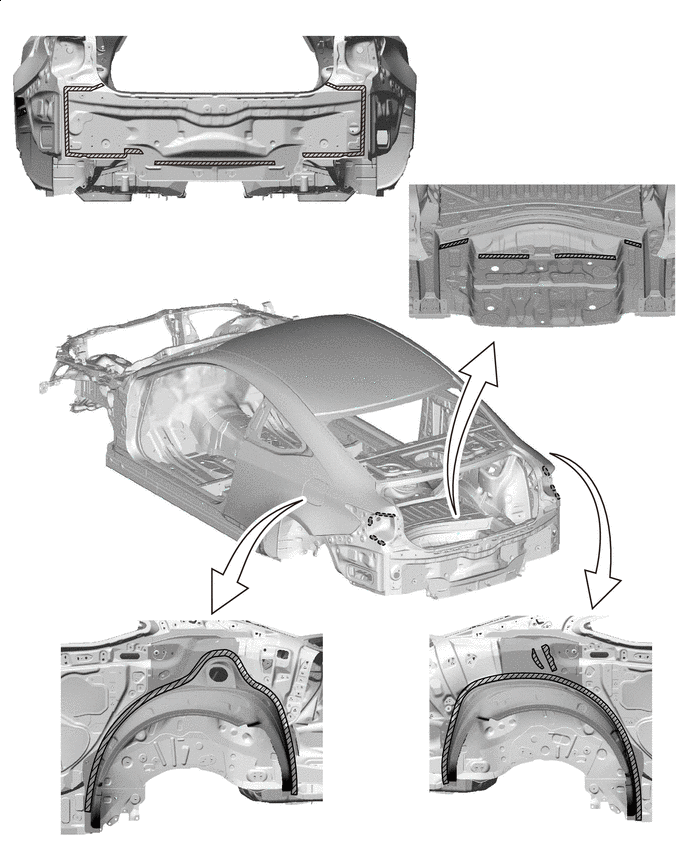

    A01F5QBC01
    A01F5YM Adhesive Application Area - -

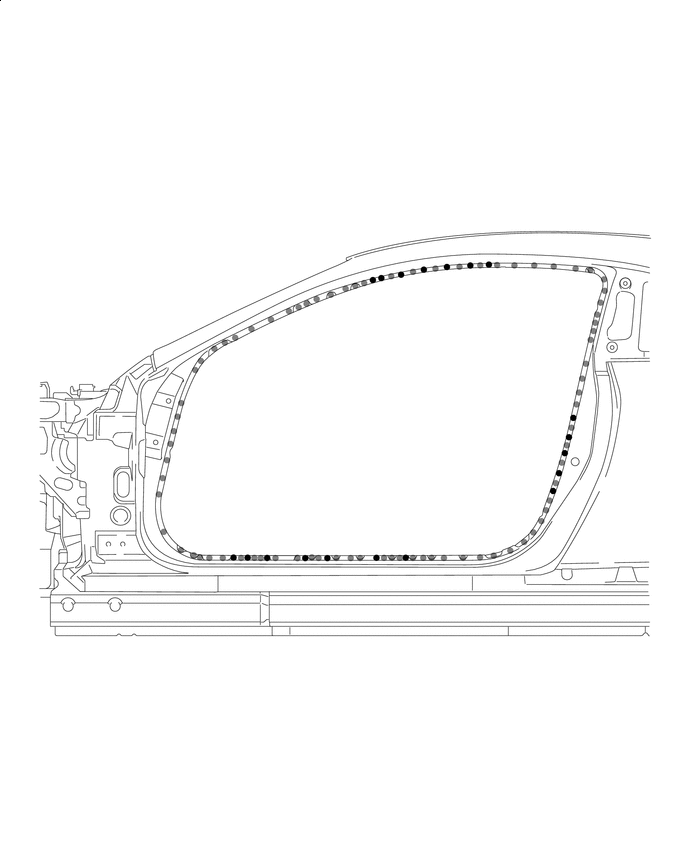

    A01F61WC01
    B0071W0 Laser Screw Welding B0071X6 Spot Weld

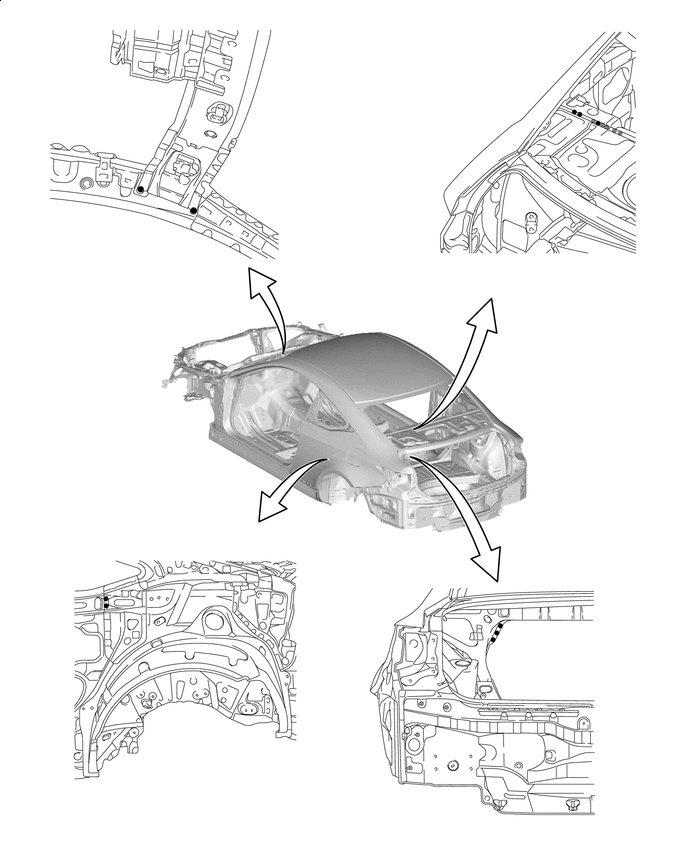

    A01F5VVC01
    B0071W0 Laser Screw Welding B0071X6 Spot Weld
