WHEN REMOVING,INSTALLING,REPAIRING OR REPLACING PARTS COMPONENTS

Tech Tips

The shapes and names of parts and the general layout may differ depending on the vehicle grade and options.


  1. FRONT BUMPER

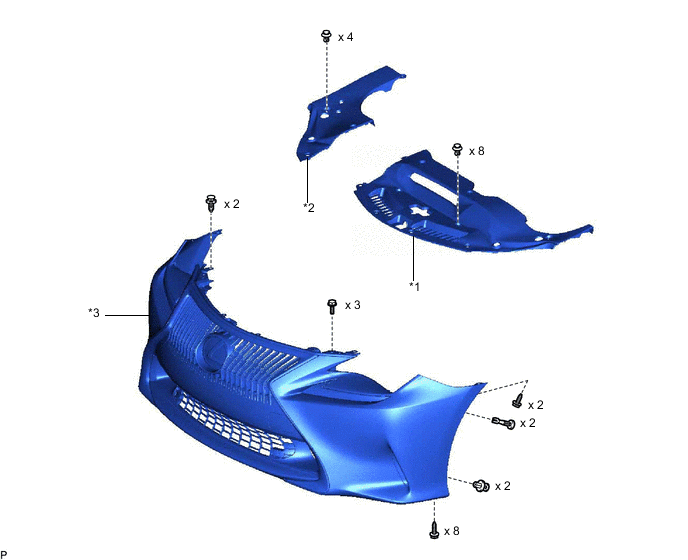

    B0071XSC01
    *1 COOL AIR INTAKE DUCT SEAL *2 ENGINE ROOM SIDE COVER
    *3 FRONT BUMPER ASSEMBLY - -

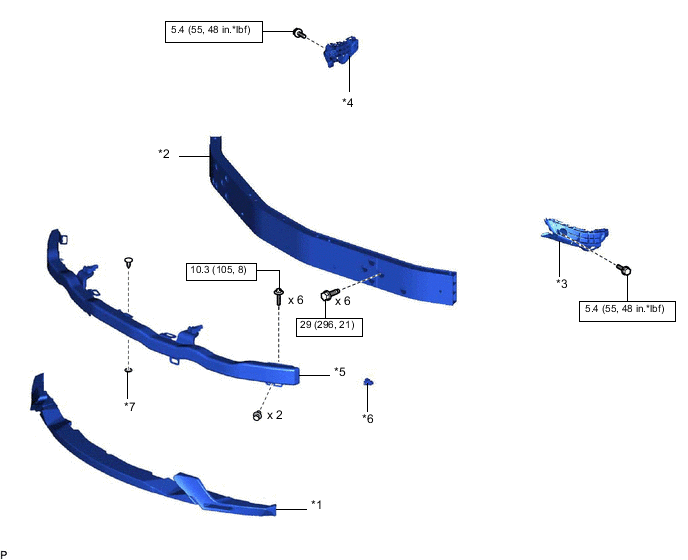

    B0071XFC01
    *1 FRONT BUMPER ENERGY ABSORBER *2 FRONT BUMPER REINFORCEMENT
    *3 FRONT BUMPER SIDE RETAINER LH *4 FRONT BUMPER SIDE RETAINER RH
    *5 POP UP HOOD CHAMBER *6 THERMISTOR ASSEMBLY
    *7 WASHER - -
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

  2. REAR BUMPER

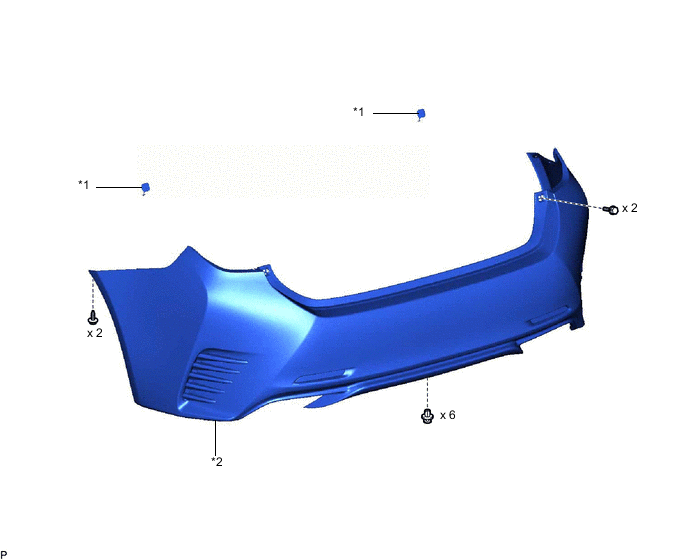

    B0071WYC01
    *1 NO. 1 REAR BUMPER PLATE *2 REAR BUMPER ASSEMBLY

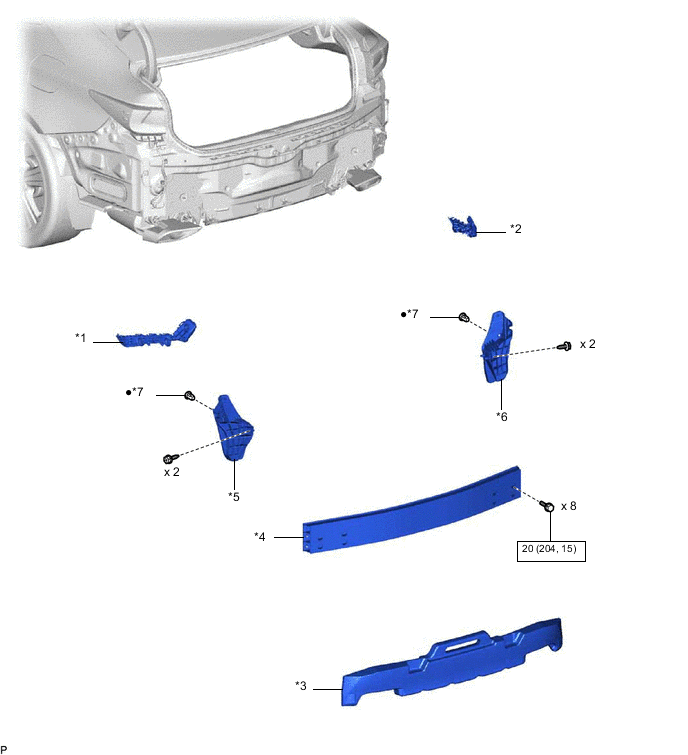

    B0071WSC02
    *1 NO. 2 REAR BUMPER SIDE SUPPORT LH *2 NO. 2 REAR BUMPER SIDE SUPPORT RH
    *3 REAR BUMPER ENERGY ABSORBER *4 REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
    *5 REAR BUMPER SIDE SUPPORT LH *6 REAR BUMPER SIDE SUPPORT RH
    *7 GROMMET - -
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

  3. UPPER INSTRUMENT PANEL

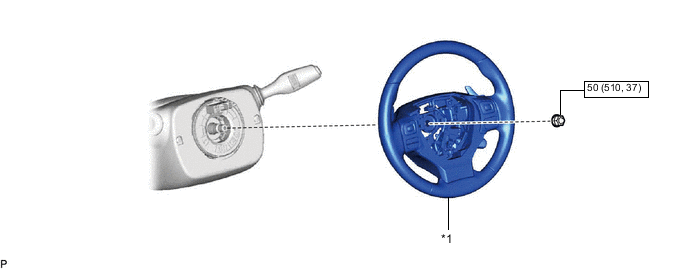

    B0071WKC01
    *1 STEERING WHEEL ASSEMBLY - -
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

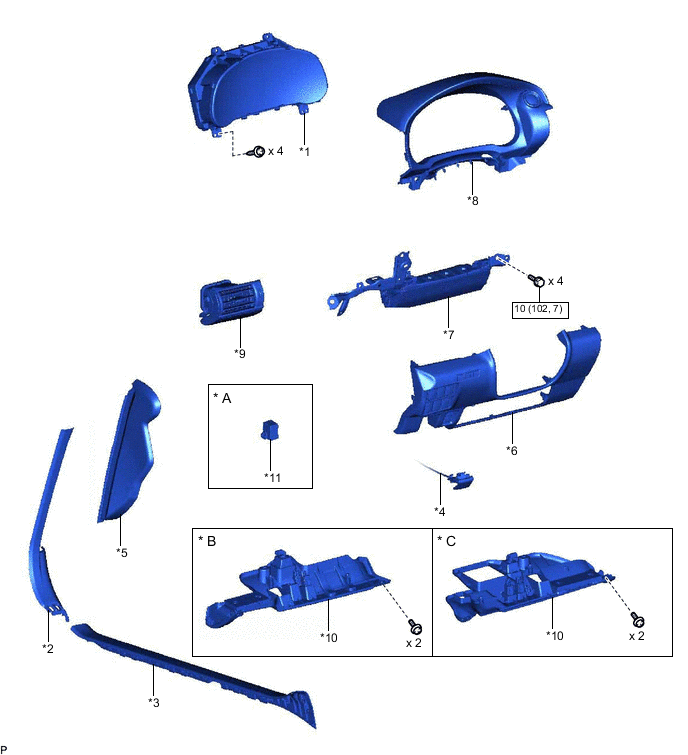

    B0071WWC01
    *A w/ Pre-crash Safety System *B for LHD
    *C for RHD - -
    *1 COMBINATION METER ASSEMBLY *2 FRONT DOOR OPENING TRIM COVER LH
    *3 FRONT DOOR SCUFF PLATE LH *4 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    *5 INSTRUMENT SIDE PANEL LH *6 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    *7 LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY *8 METER HOOD SUB-ASSEMBLY
    *9 NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY *10 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    *11 SKID CONTROL BUZZER ASSEMBLY - -
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

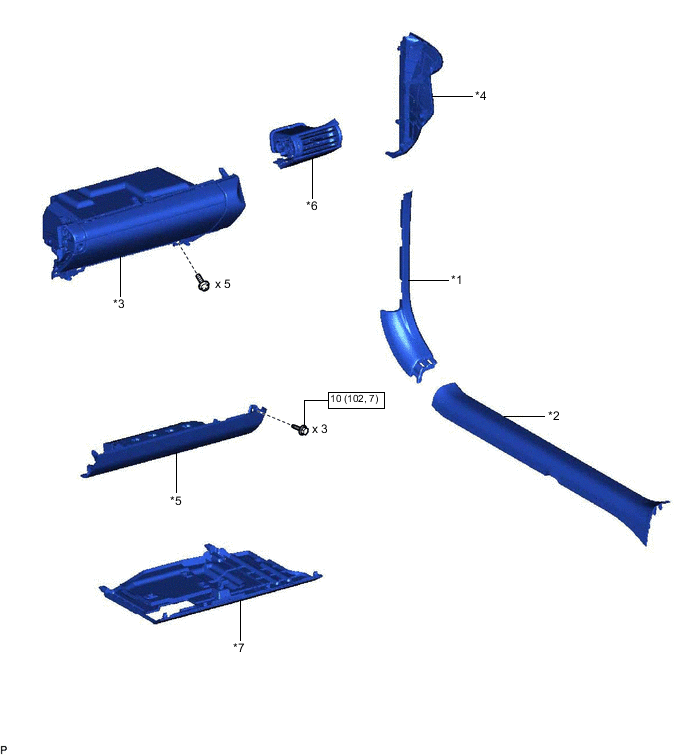

    B0071WNC01
    *1 FRONT DOOR OPENING TRIM COVER RH *2 FRONT DOOR SCUFF PLATE RH
    *3 GLOVE COMPARTMENT DOOR ASSEMBLY *4 INSTRUMENT SIDE PANEL RH
    *5 LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY *6 NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    *7 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY - -
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

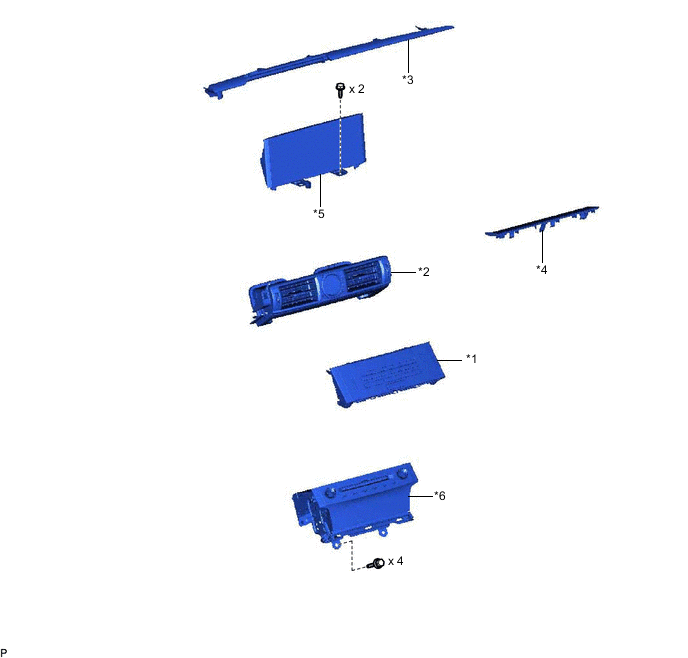

    B0071VWC01
    *1 AIR CONDITIONING CONTROL ASSEMBLY *2 CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
    *3 INSTRUMENT CLUSTER FINISH PANEL ORNAMENT *4 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    *5 MULTI-DISPLAY ASSEMBLY WITH BRACKET *6 RADIO RECEIVER ASSEMBLY WITH BRACKET

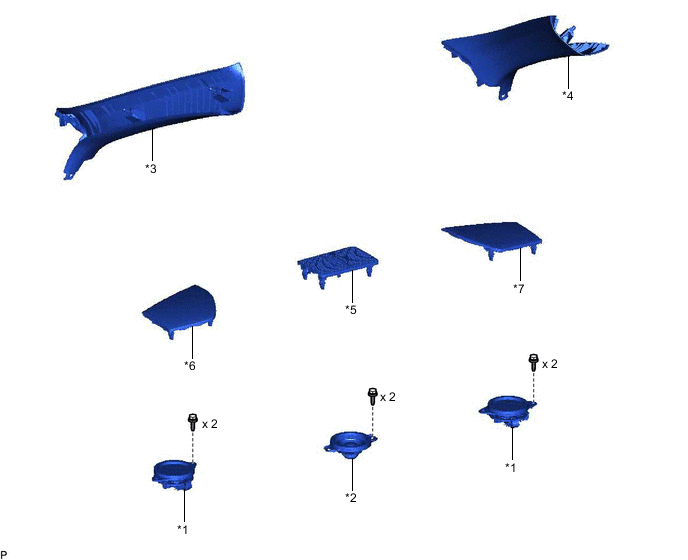

    B0071W5C01
    *1 FRONT NO. 2 SPEAKER ASSEMBLY *2 FRONT NO. 3 SPEAKER ASSEMBLY
    *3 FRONT PILLAR GARNISH LH *4 FRONT PILLAR GARNISH RH
    *5 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY *6 NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    *7 NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY - -

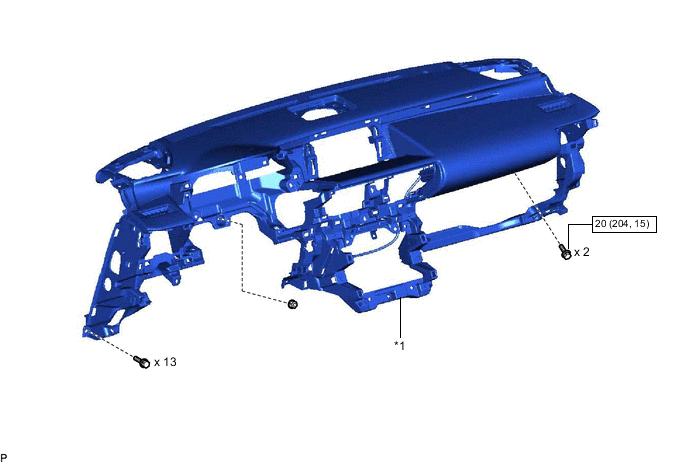

    B0071WRC01
    *1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY - -
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

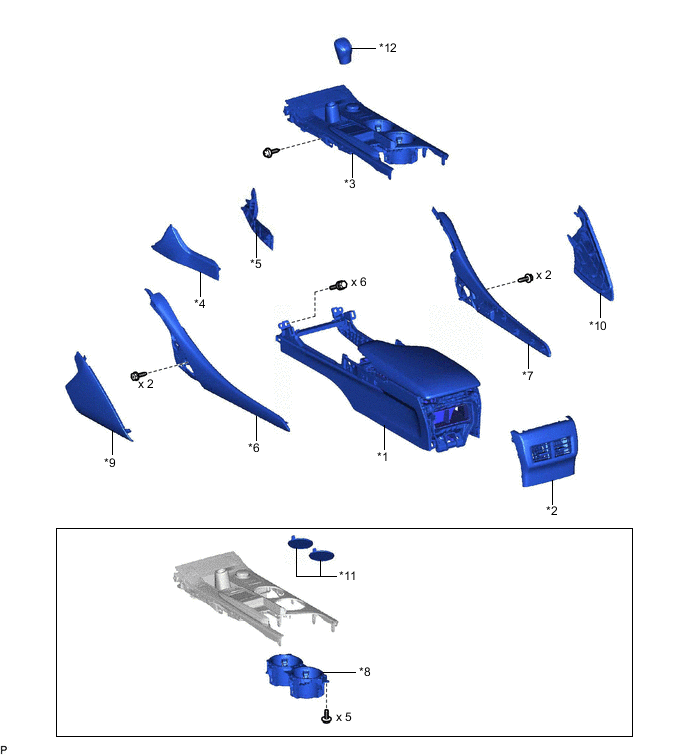

    B0071X3C01
    *1 CONSOLE BOX ASSEMBLY *2 CONSOLE BOX REGISTER ASSEMBLY
    *3 CONSOLE PANEL SUB-ASSEMBLY *4 FRONT NO. 1 CONSOLE BOX INSERT
    *5 FRONT NO. 2 CONSOLE BOX INSERT *6 FRONT PANEL GARNISH LH
    *7 FRONT PANEL GARNISH RH *8 INSTRUMENT PANEL CUP HOLDER ASSEMBLY
    *9 INSTRUMENT PANEL FINISH PANEL END LH *10 INSTRUMENT PANEL FINISH PANEL END RH
    *11 NO. 2 CONSOLE BOX SILENCER PAD *12 SHIFT LEVER KNOB SUB-ASSEMBLY

  4. INTERIOR TRIM

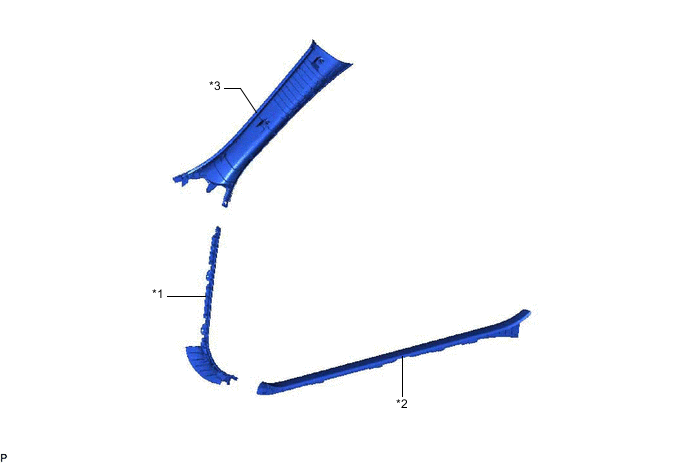

    B0071WMC01
    *1 FRONT DOOR OPENING TRIM COVER LH *2 FRONT DOOR SCUFF PLATE LH
    *3 FRONT PILLAR GARNISH LH - -

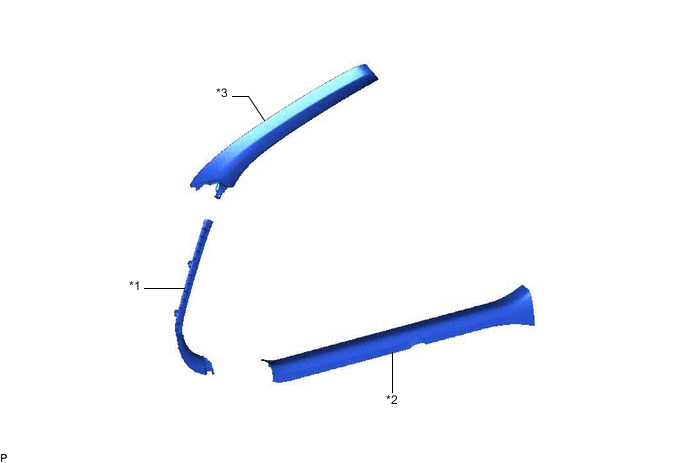

    B0071XCC01
    *1 FRONT DOOR OPENING TRIM COVER RH *2 FRONT DOOR SCUFF PLATE RH
    *3 FRONT PILLAR GARNISH RH - -

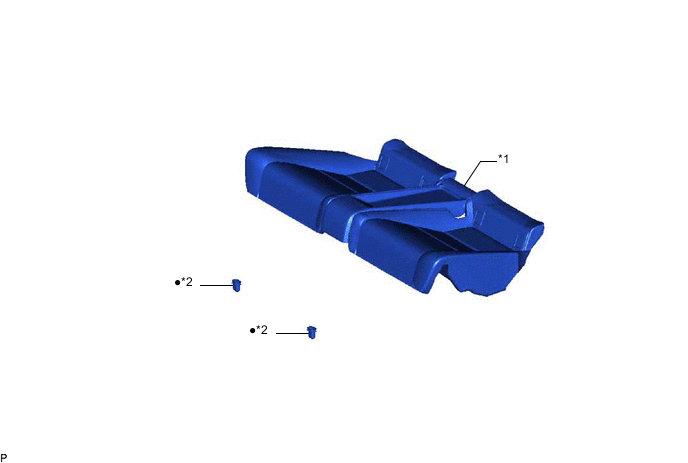

    B0071X8C01
    *1 REAR SEAT CUSHION ASSEMBLY *2 REAR SEAT CUSHION LOCK HOOK
    ● Non-reusable part - -

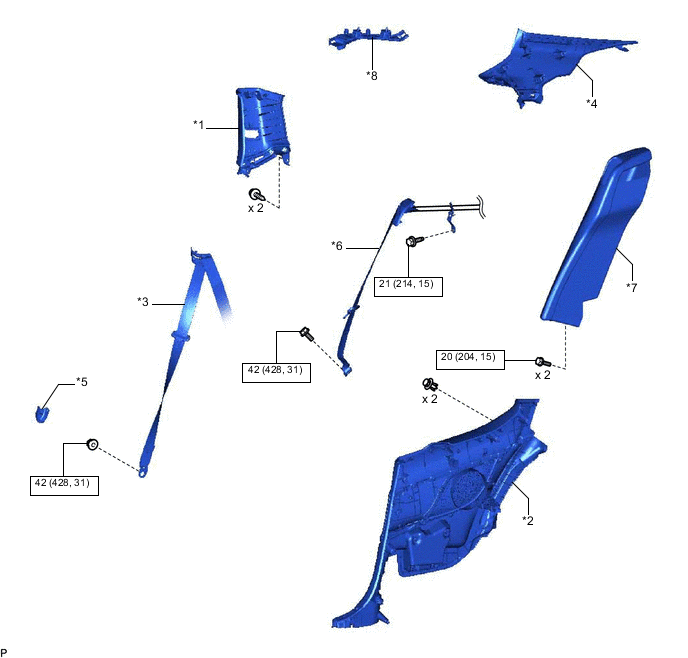

    B0071WHC01
    *1 CENTER PILLAR GARNISH ASSEMBLY LH *2 FRONT QUARTER TRIM PANEL ASSEMBLY LH
    *3 FRONT SEAT OUTER BELT ASSEMBLY LH *4 INNER ROOF SIDE GARNISH ASSEMBLY LH
    *5 LAP BELT OUTER ANCHOR COVER *6 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH
    *7 REAR SIDE SEATBACK ASSEMBLY LH *8 ROOF SIDE RAIL GARNISH ASSEMBLY LH
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

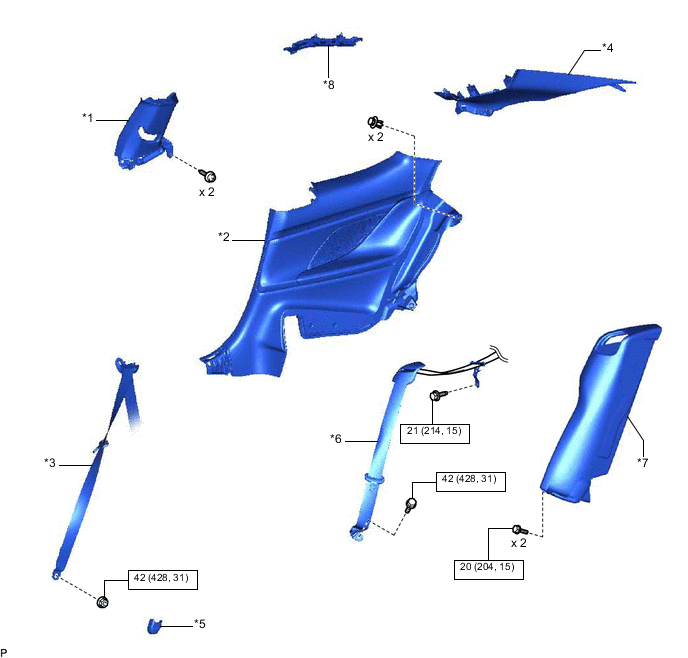

    B0071WQC01
    *1 CENTER PILLAR GARNISH ASSEMBLY RH *2 FRONT QUARTER TRIM PANEL ASSEMBLY RH
    *3 FRONT SEAT OUTER BELT ASSEMBLY RH *4 INNER ROOF SIDE GARNISH ASSEMBLY RH
    *5 LAP BELT OUTER ANCHOR COVER *6 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH
    *7 REAR SIDE SEATBACK ASSEMBLY RH *8 ROOF SIDE RAIL GARNISH ASSEMBLY RH
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

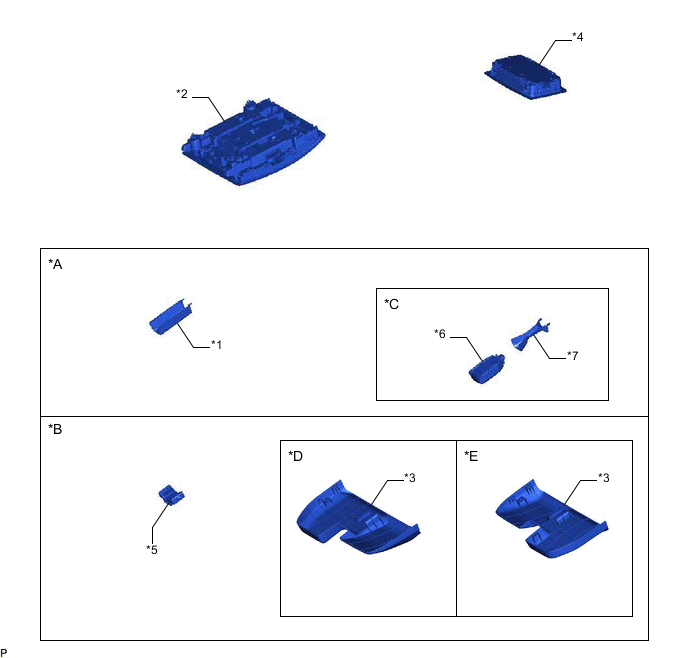

    B0071WIC01
    *A w/o Lane Departure Alert System *B w/ Lane Departure Alert System
    *C w/ Rain Sensor *D for LHD
    *E for RHD - -
    *1 INNER REAR VIEW MIRROR STAY HOLDER COVER *2 MAP LIGHT ASSEMBLY
    *3 NO. 1 LANE RECOGNITION COVER *4 NO. 1 ROOM LIGHT ASSEMBLY
    *5 NO. 2 LANE RECOGNITION COVER *6 RAIN SENSOR
    *7 RAIN SENSOR COVER - -

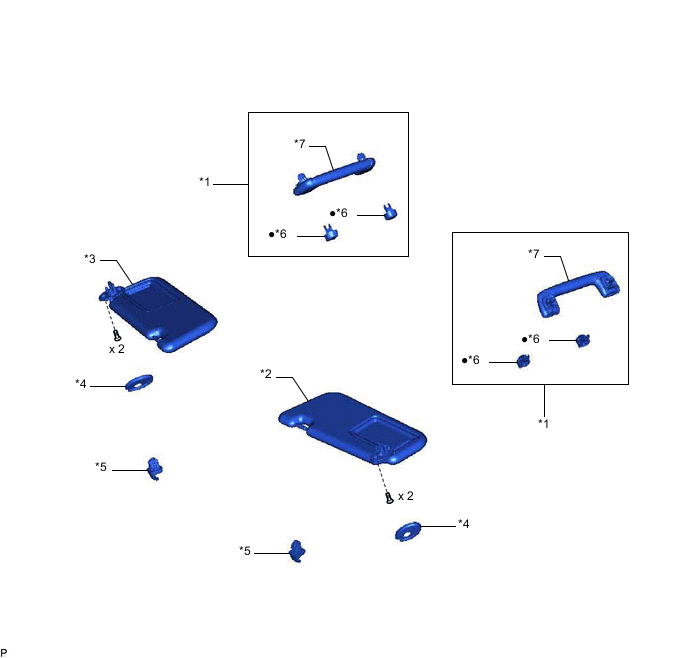

    B0071XHC01
    *1 ASSIST GRIP SUB-ASSEMBLY *2 VISOR ASSEMBLY LH
    *3 VISOR ASSEMBLY RH *4 VISOR BRACKET COVER
    *5 VISOR HOLDER *6 ASSIST GRIP COVER
    *7 ASSIST GRIP - -

  5. FRONT SEAT OUTER BELT ASSEMBLY

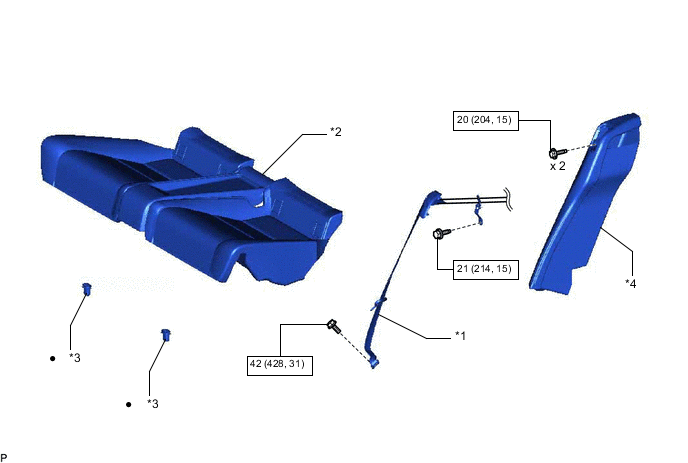

    B0071VXC01
    *1 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY *2 REAR SEAT CUSHION ASSEMBLY
    *3 REAR SEAT CUSHION LOCK HOOK *4 REAR SIDE SEATBACK ASSEMBLY
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

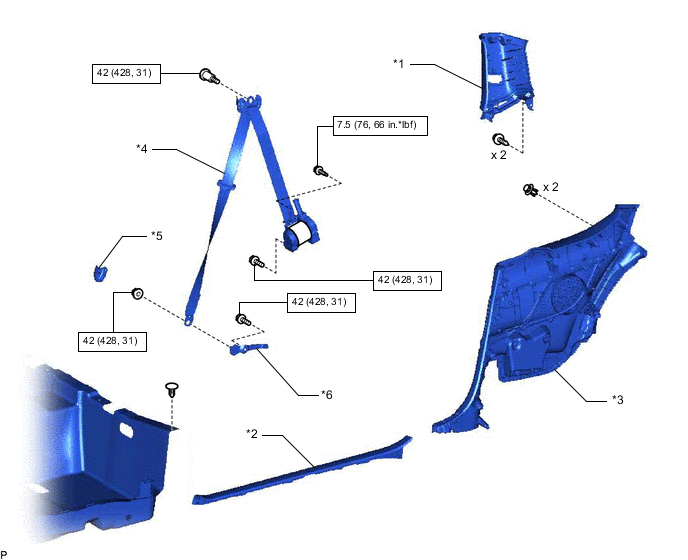

    B0071XQC01
    *1 CENTER PILLAR GARNISH ASSEMBLY *2 FRONT DOOR SCUFF PLATE
    *3 FRONT QUARTER TRIM PANEL ASSEMBLY *4 FRONT SEAT OUTER BELT ASSEMBLY
    *5 LAP BELT OUTER ANCHOR COVER *6 OUTER BELT ANCHOR BRACKET SUB-ASSEMBLY
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

  6. REAR SEAT OUTER BELT ASSEMBLY

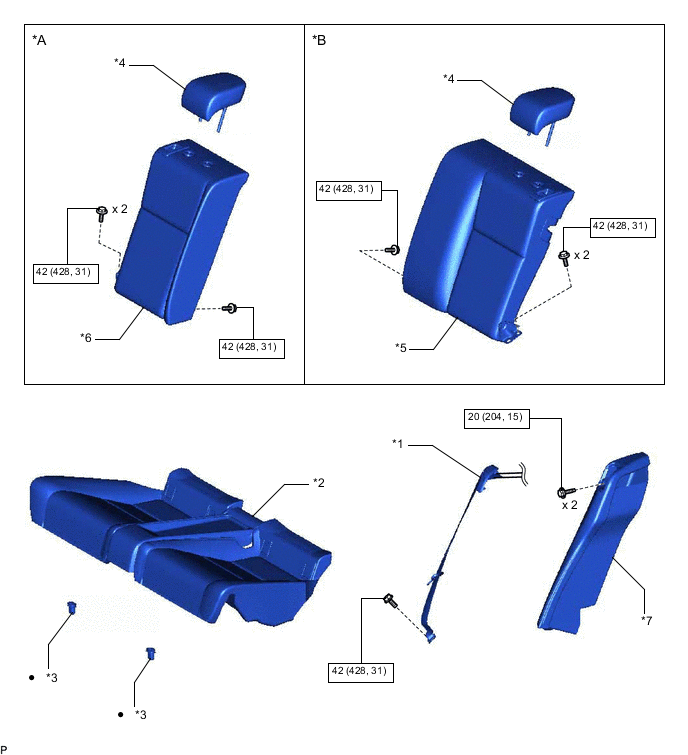

    B0071WTC01
    *A for RH Side *B for LH Side
    *1 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY *2 REAR SEAT CUSHION ASSEMBLY
    *3 REAR SEAT CUSHION LOCK HOOK *4 REAR SEAT HEADREST ASSEMBLY
    *5 REAR SEATBACK ASSEMBLY LH *6 REAR SEATBACK ASSEMBLY RH
    *7 REAR SIDE SEATBACK ASSEMBLY - -
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

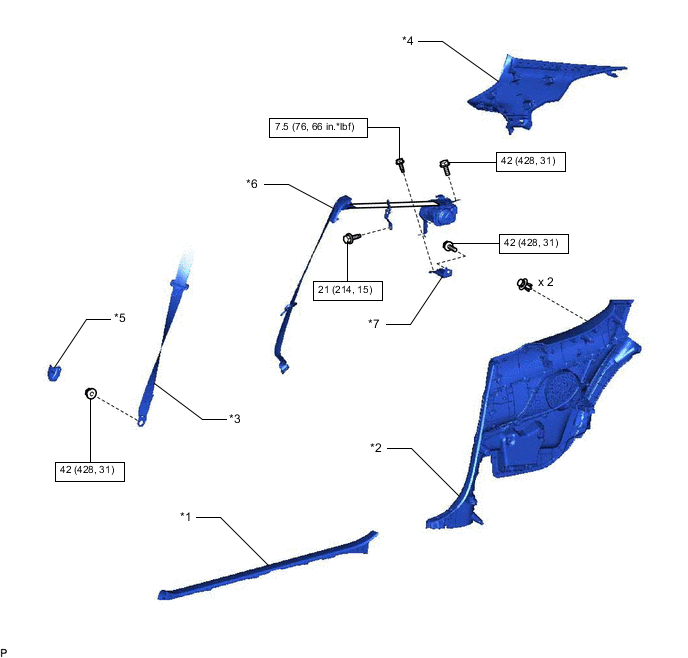

    B0071WGC01
    *1 FRONT DOOR SCUFF PLATE *2 FRONT QUARTER TRIM PANEL ASSEMBLY
    *3 FRONT SEAT OUTER BELT ASSEMBLY *4 INNER ROOF SIDE GARNISH ASSEMBLY
    *5 LAP BELT OUTER ANCHOR COVER *6 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY
    *7 REAR SEAT OUTER BELT ANCHOR BRACKET ASSEMBLY - -
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

  7. FRONT SEAT ASSEMBLY

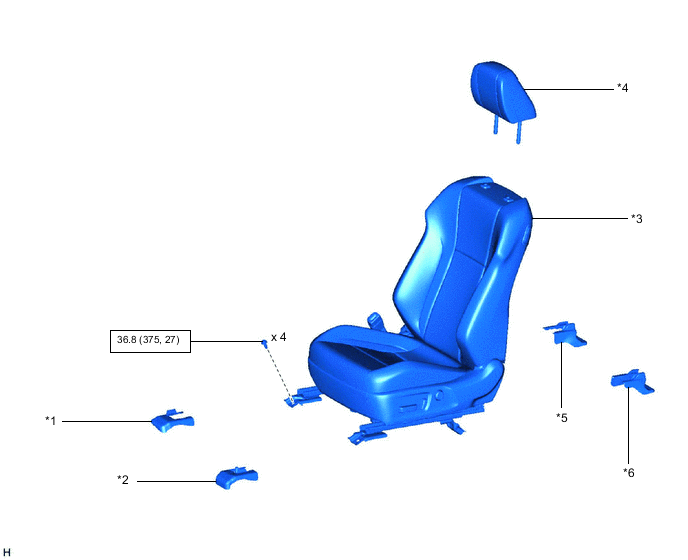

    B0071WJC01
    *1 FRONT INNER SEAT TRACK BRACKET COVER *2 FRONT OUTER SEAT TRACK BRACKET COVER
    *3 FRONT SEAT ASSEMBLY *4 FRONT SEAT HEADREST ASSEMBLY
    *5 INNER SEAT TRACK BRACKET COVER *6 REAR OUTER FRONT SEAT TRACK COVER
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -

  8. REAR SEAT ASSEMBLY

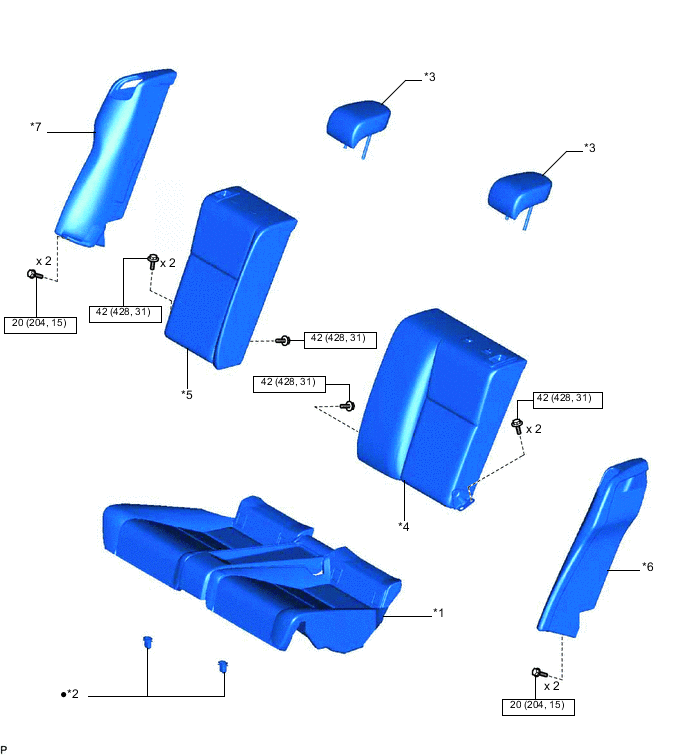

    B0071WZC01
    *1 REAR SEAT CUSHION ASSEMBLY *2 REAR SEAT CUSHION LOCK HOOK
    *3 REAR SEAT HEADREST ASSEMBLY *4 REAR SEATBACK ASSEMBLY LH
    *5 REAR SEATBACK ASSEMBLY RH *6 REAR SIDE SEATBACK ASSEMBLY LH
    *7 REAR SIDE SEATBACK ASSEMBLY RH - -
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

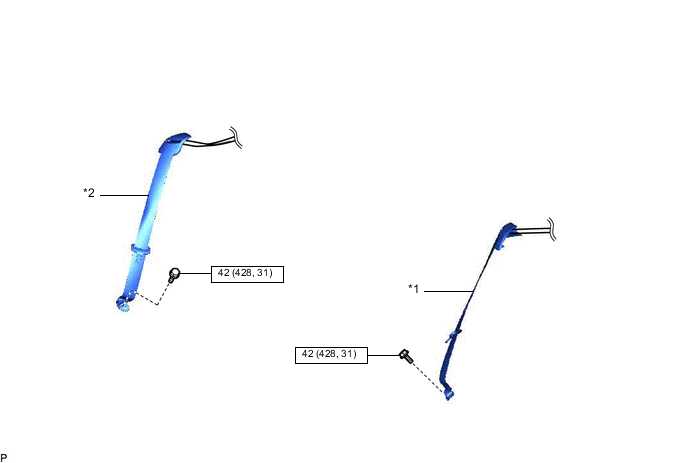

    B0071W8C01
    *1 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH *2 REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH
    B0071VY N*m (kgf*cm, ft.*lbf): Specified torque - -
