HOW TO USE THIS MANUAL ILLUSTRATION OF WELD POINT SYMBOLS

REMOVAL

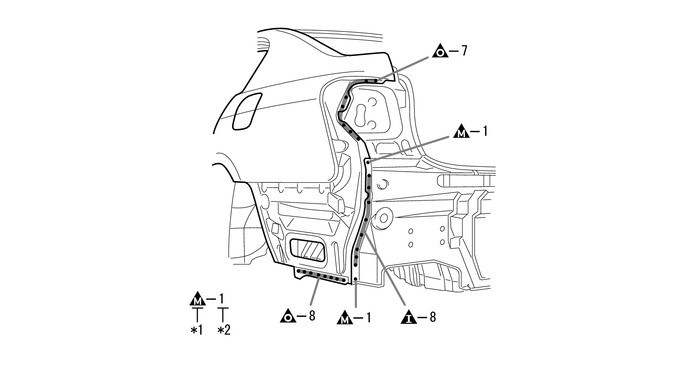

A01F5WG
*1 Position of panels that are removed
*2 Weld points
SYMBOLS MEANING ILLUSTRATION
A01F5Y9 Remove Weld Points A01F5WH

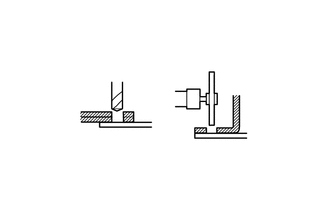

A01F5PM Position of Panel Being Replaced is on Outside A01F5YW

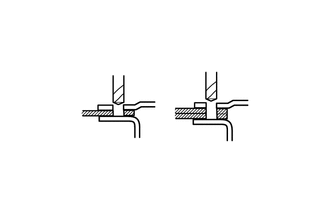

A01F5WF Position of Panel Being Replaced is in Center A01F5RM

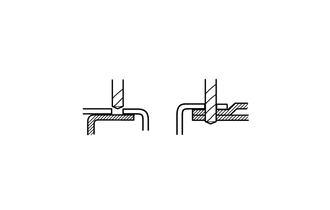

A01F5WL Position of Panel Being Replaced is on Inside A01F5XE
INSTALLATION
A01F5TX
*1 Welding method and panel position
*2 Weld points
SYMBOLS MEANING ILLUSTRATION
A01F61Z Spot Welding A01F60T
A01F5QN Plug Welding A01F5ZN
A01F5VY Spot MIG Welding A01F5Y5
