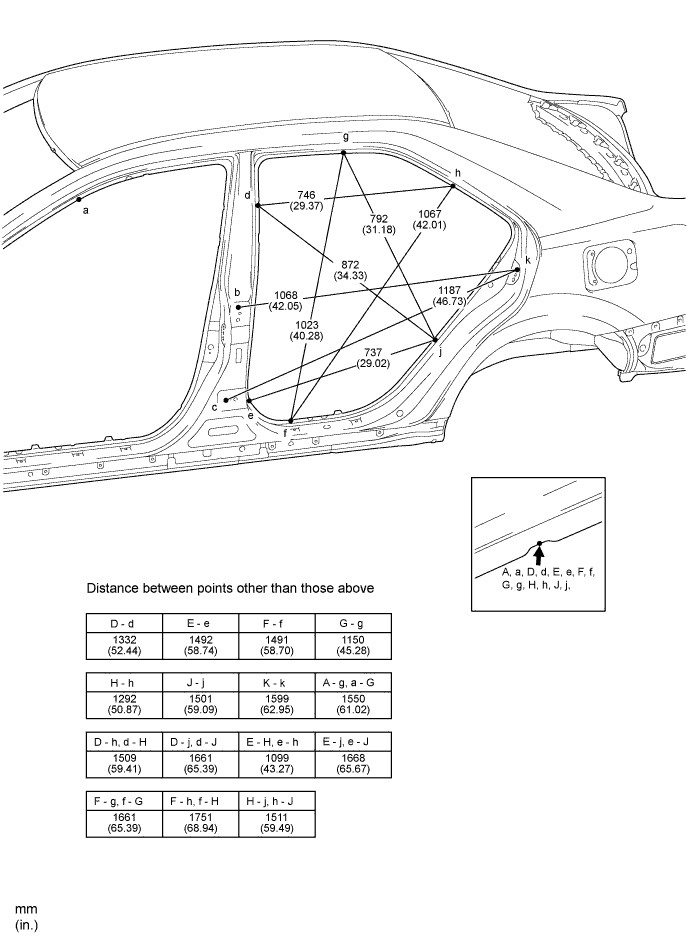

REAR DOOR THREE-DIMENSIONAL DISTANCE
Tech Tips
-
Use specification *1 when performing centering measurements for the body dimensions.
-
In cases in which only one dimension is given, left and right are symmetrical.
-
For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).
| Symbol | Name | Hole Diameter mm (in.) |
|---|---|---|
| A, a | Front Body Pillar Assembly Mark | - |
| B, b | Rear Door Hinge Installation Nut | M8 (0.31) |
| C, c | Rear Door Hinge Installation Nut | M8 (0.31) |
| D, d | Center Body Pillar Assembly Mark | - |
| E, e | Center Body Pillar Assembly Mark | - |
| F, f | Rocker Panel Assembly Mark | - |
| G, g | Roof Side Rail Assembly Mark | - |
| H, h | Quarter Panel Assembly Mark | - |
| J, j | Quarter Panel Assembly Mark | - |
| K, k | Rear Door Lock Striker Installation Nut | M8 (0.31) |
| L, l | Front Floor Cross Side Member Standard Hole | φ10 (0.39) |
| *1 | Front Floor Panel Reinforcement Standard Hole | φ10 (0.39) |
