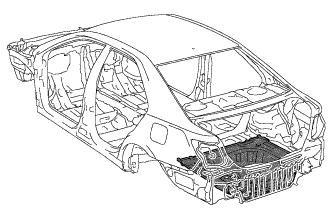

REAR FLOOR PAN ASSEMBLY REPLACEMENT

  1. REMOVAL

    Symbol meaning
    A011ZTV Remove Weld Points
    A011ZSL Remove Weld Points

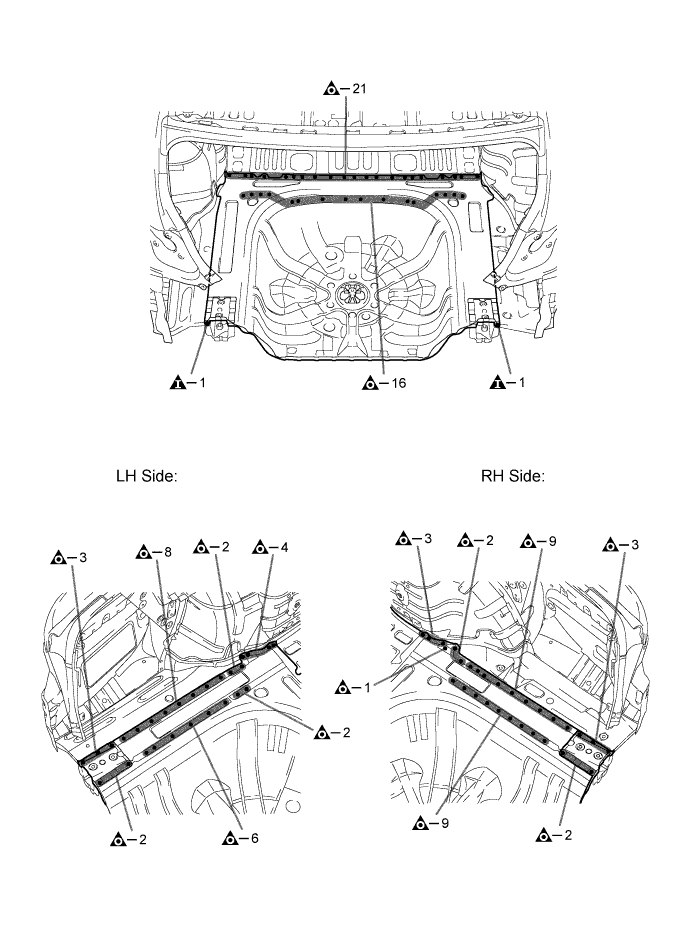

    A011ZPZE01

  2. INSTALLATION

    Symbol meaning
    A011ZRI Plug Weld
    A011ZPO Plug Weld
    A011ZQT Fillet Weld

      INSTALLATION POINT

    1. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

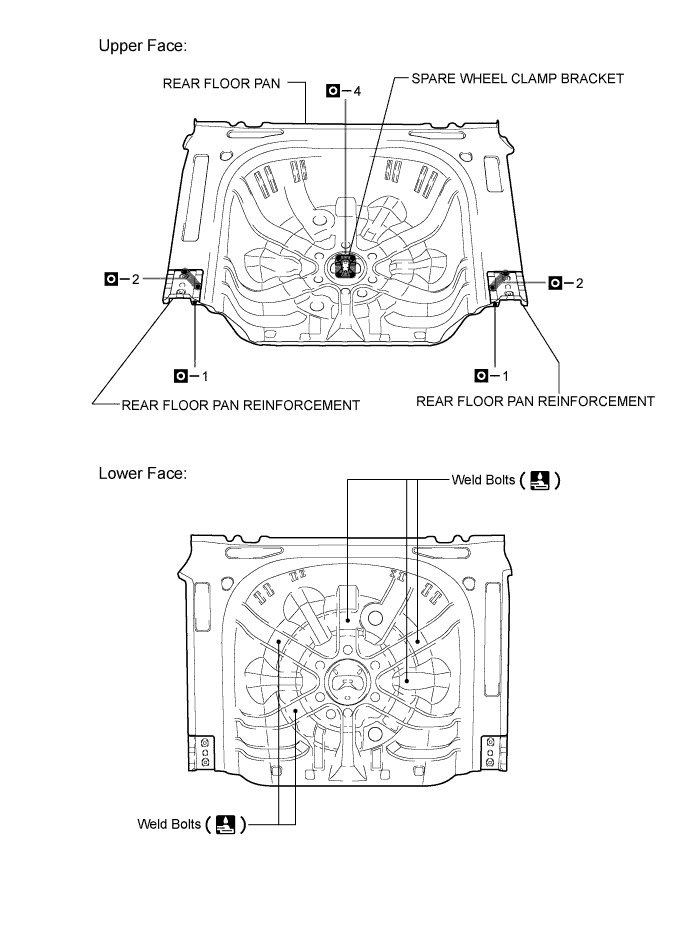

    2. Before temporarily installing the new parts, weld the spare wheel clamp bracket, rear floor pan reinforcement and weld bolts with the standard number of welding points.

    3. When welding *1, make a hole on a new part for plug welding and weld the panel with the panel behind completely.

    4. After welding, apply body sealer and undercoating to the corresponding parts. (See the painting / coating)

    5. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    A011ZT6E01
    A011ZSME01
