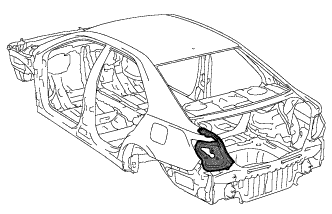

QUARTER PANEL END HOUSING ASSEMBLY REPLACEMENT

  1. REMOVAL

    Symbol meaning
    A011ZTV Remove Weld Points
    A011ZSL Remove Weld Points

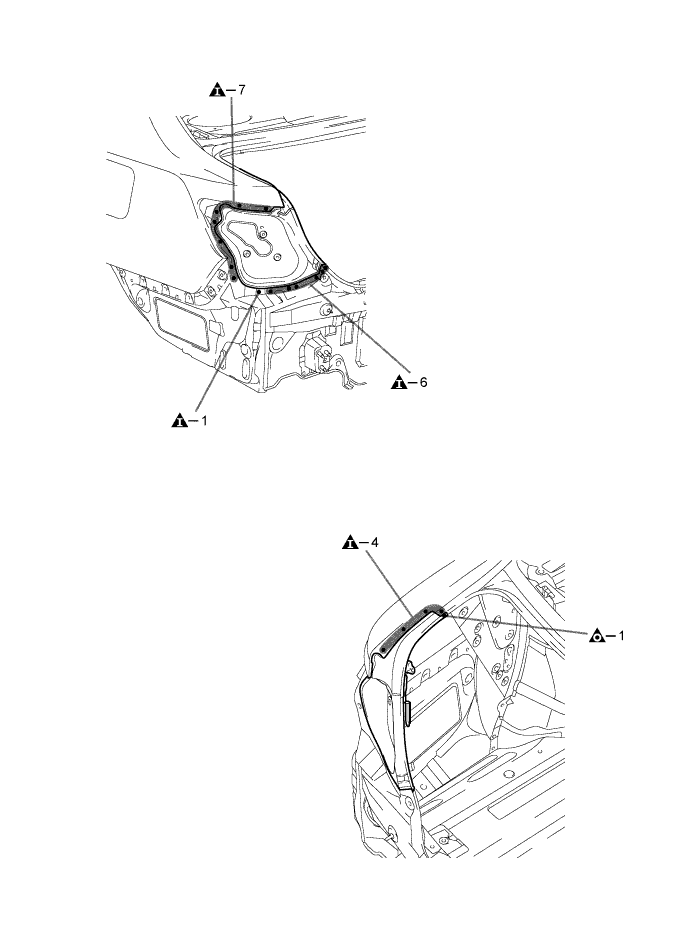

    A011ZSBE01

  2. INSTALLATION

    Symbol meaning
    A011ZRI Plug Weld
    A011ZPO Plug Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimension diagram)

    3. After welding, apply body sealer to the corresponding parts. (See the painting / coating)

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

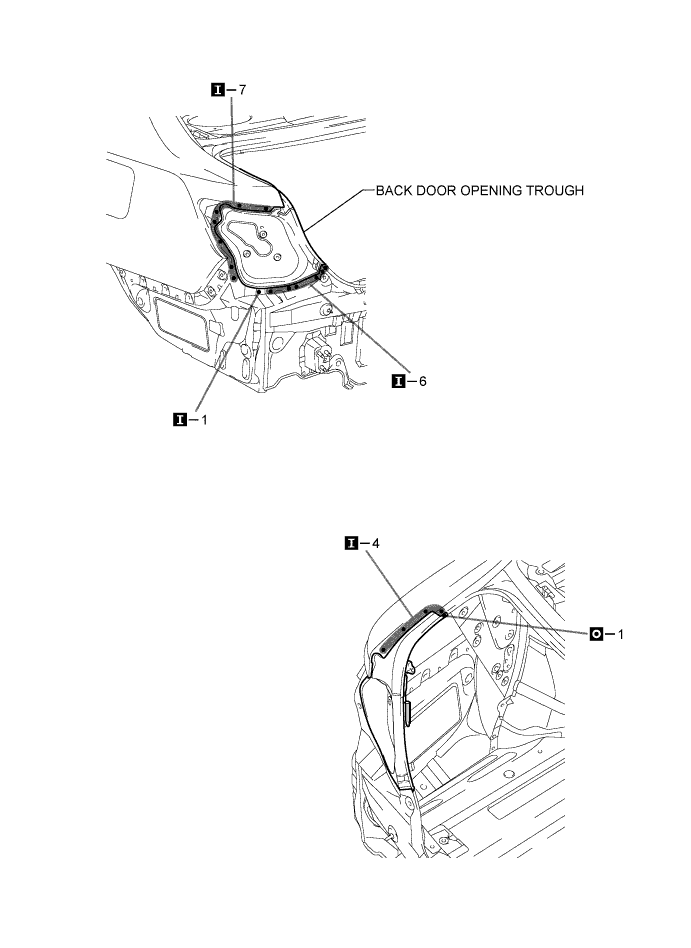

    A011ZTHE01
