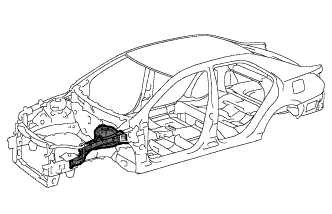

FRONT FENDER APRON ASSEMBLY REPLACEMENT

  1. REMOVAL

    Symbol meaning
    A011ZTV Remove Weld Points

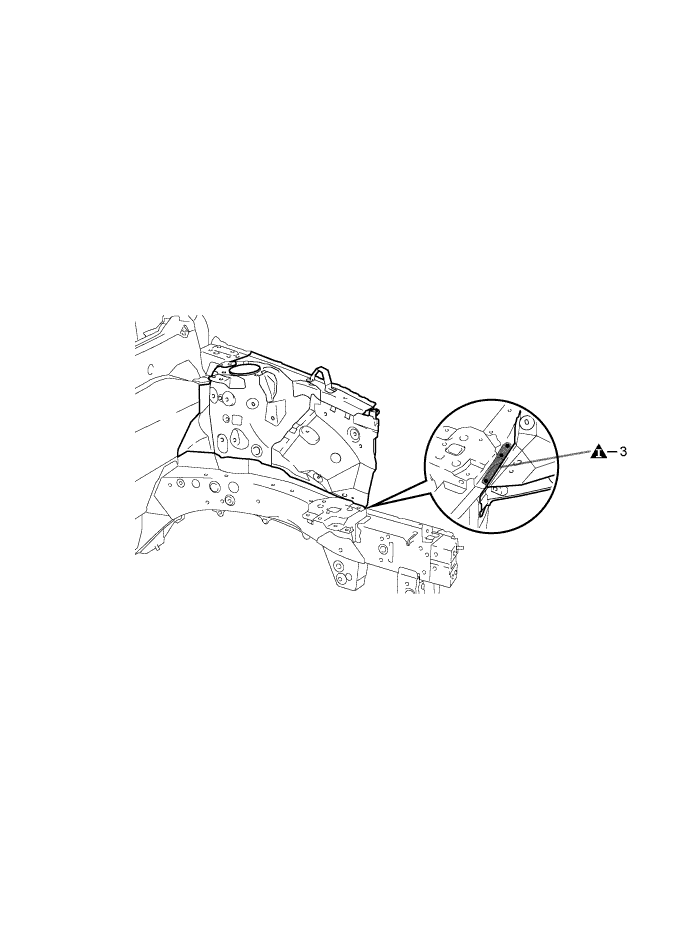

    A011ZSL Remove Weld Points

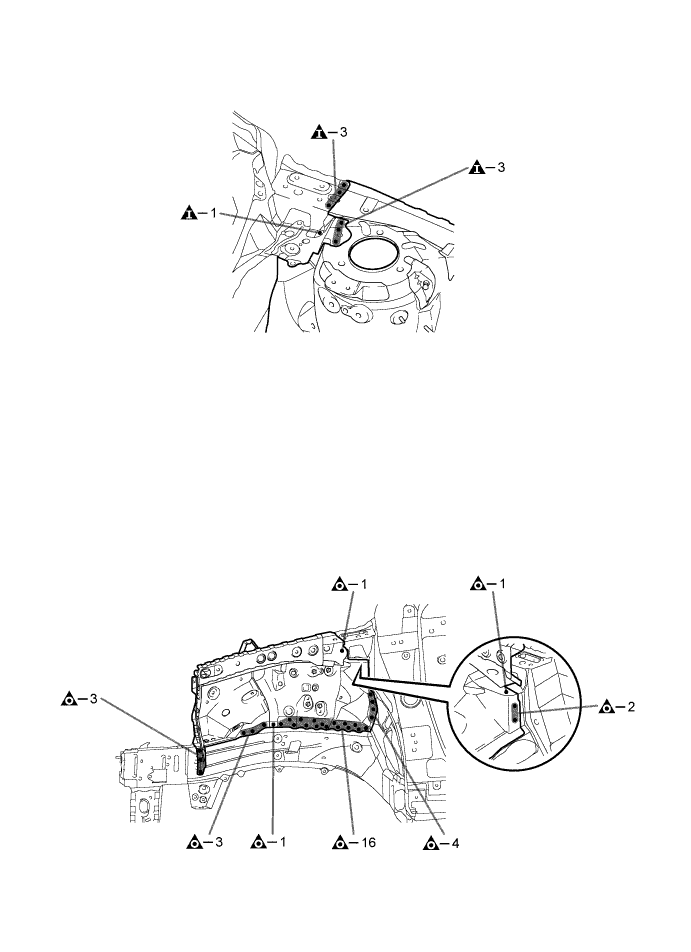

    A011ZWJE01
    A011ZS6E01

  2. INSTALLATION

    Symbol meaning
    A011ZRI Plug Weld
    A011ZPO Plug Weld
    A011ZRW Body Sealer

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    3. Before installing a new part, apply body sealer.

      Tech Tips

      Apply body sealer in an even, continuous bead.

    4. Make sure to attach correctly in accordance with the body dimension diagram as this part affects the front wheel alignment.

    5. After welding, apply body sealer and undercoating to the corresponding parts. (See the painting / coating)

    6. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

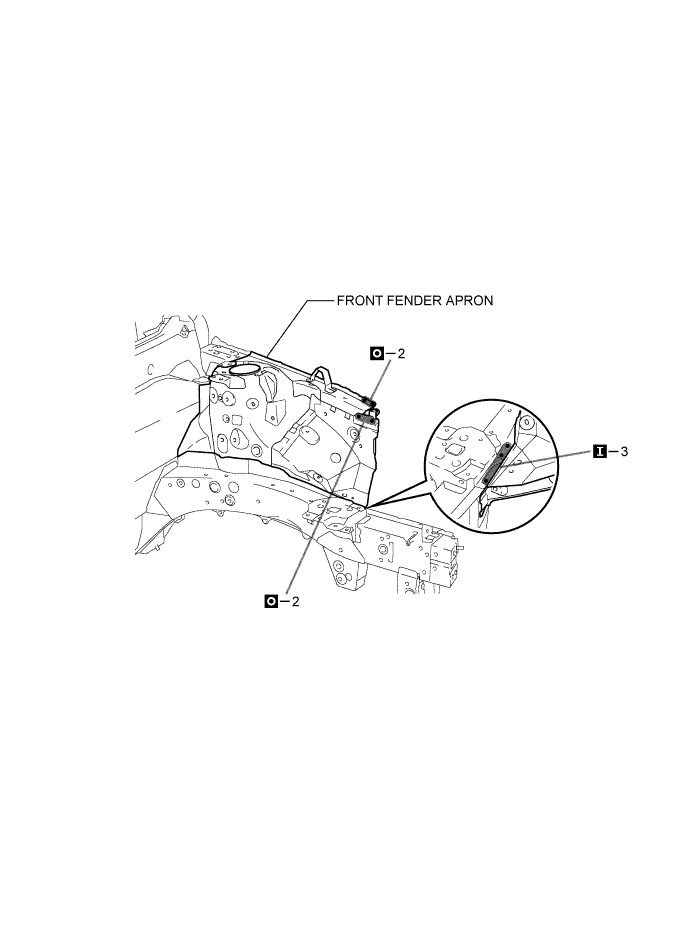

    A011ZTEE01

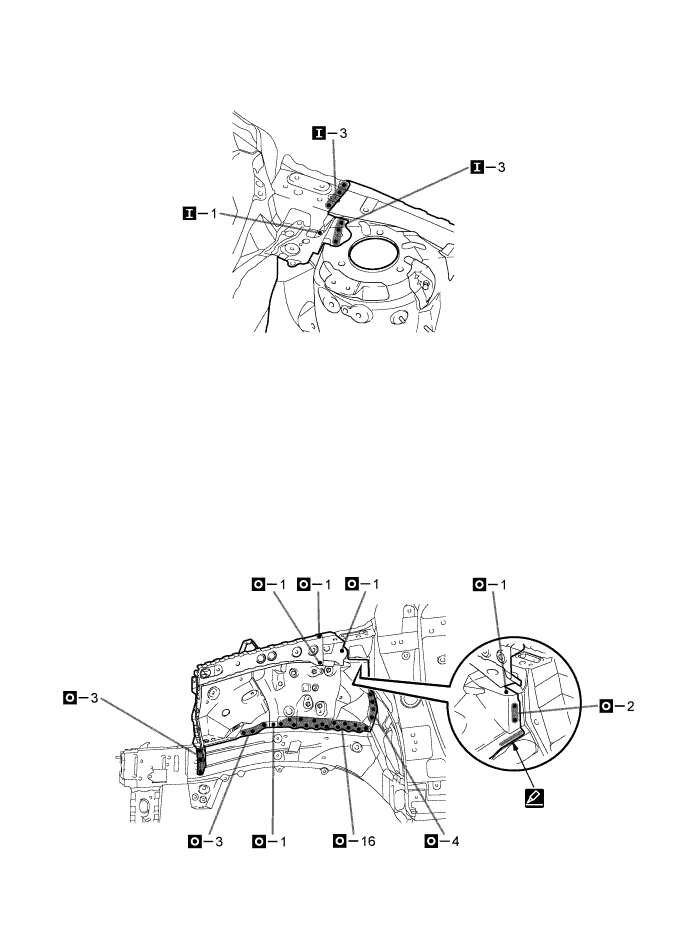

    A011ZVSE01
