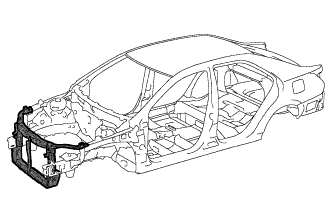

RADIATOR SUPPORT ASSEMBLY REPLACEMENT

A011ZTB

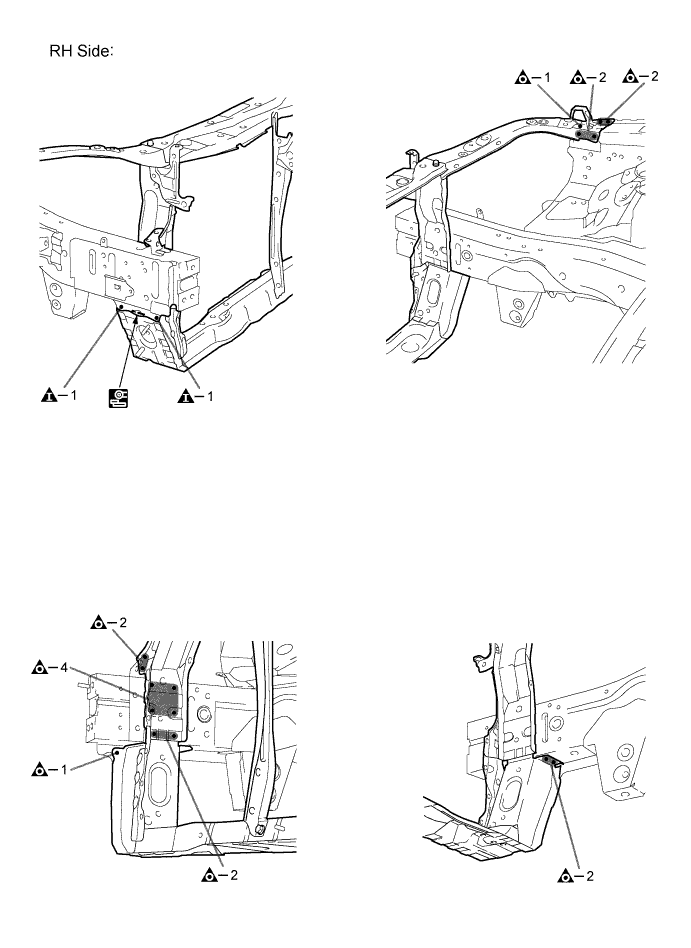

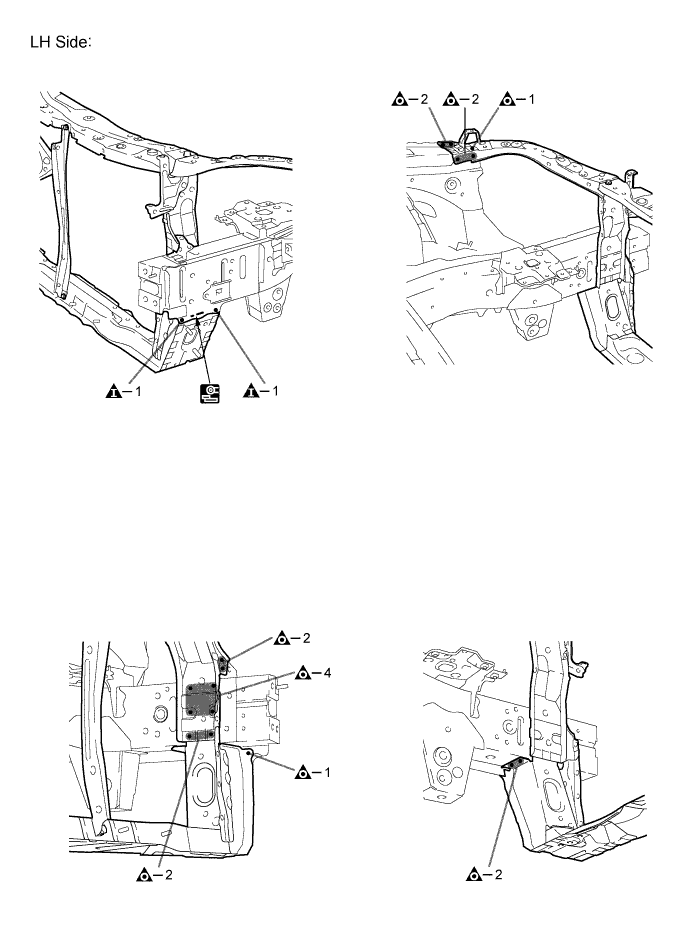

  1. REMOVAL

    Symbol meaning
    A011ZTV Remove Weld Points
    A011ZSL Remove Weld Points
    A011ZVQ Cut with Disc Sander etc.
    A011ZV6E01
    A011ZQOE01

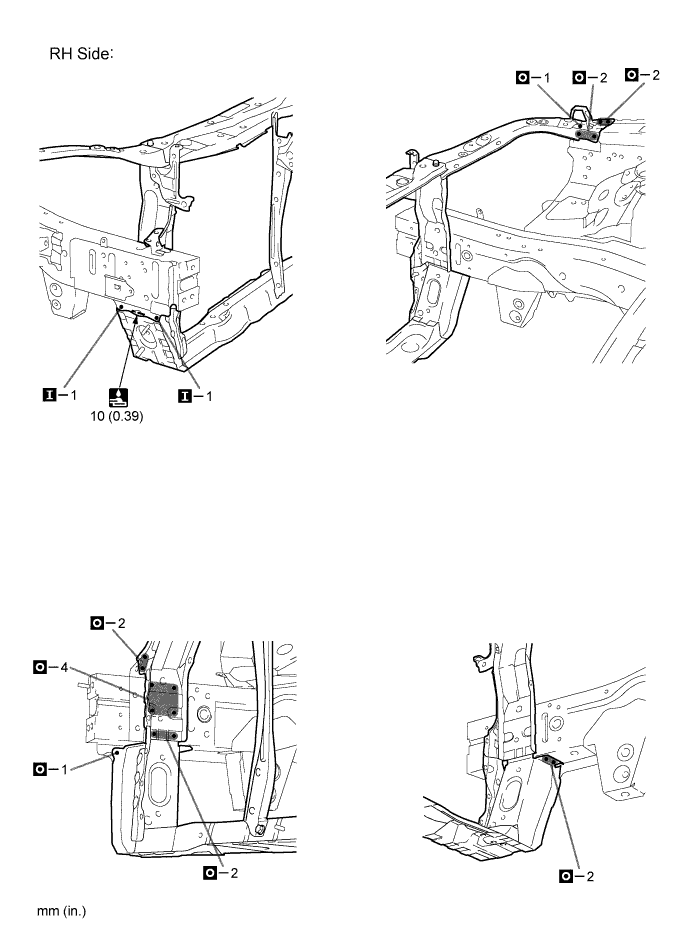

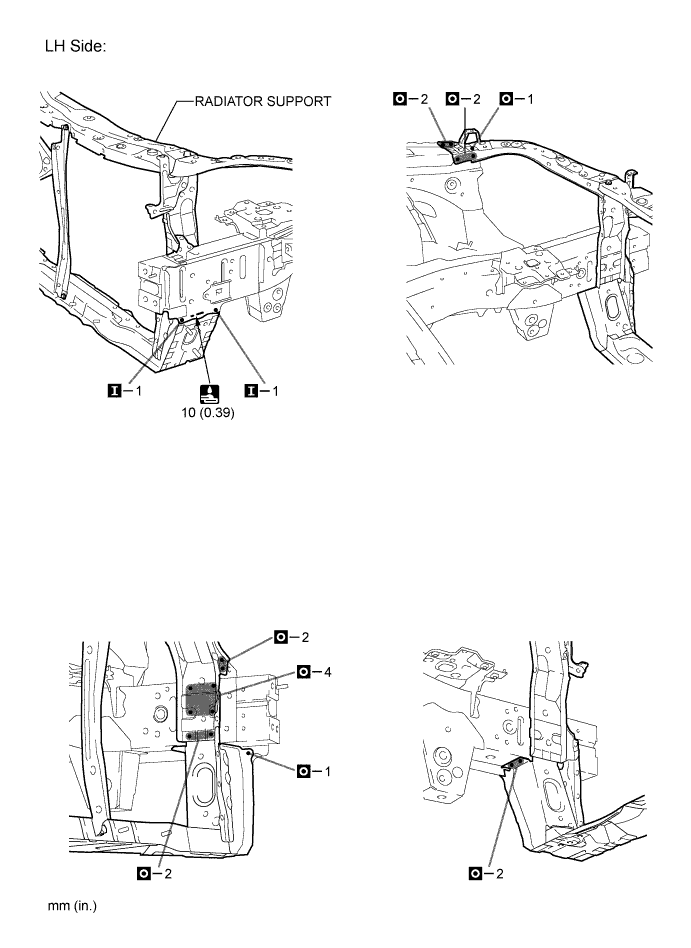

  2. INSTALLATION

    Symbol meaning
    A011ZRI Plug Weld
    A011ZPO Plug Weld
    A011ZQT Fillet Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    3. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    4. Measure the dimensions before installing the headlights.

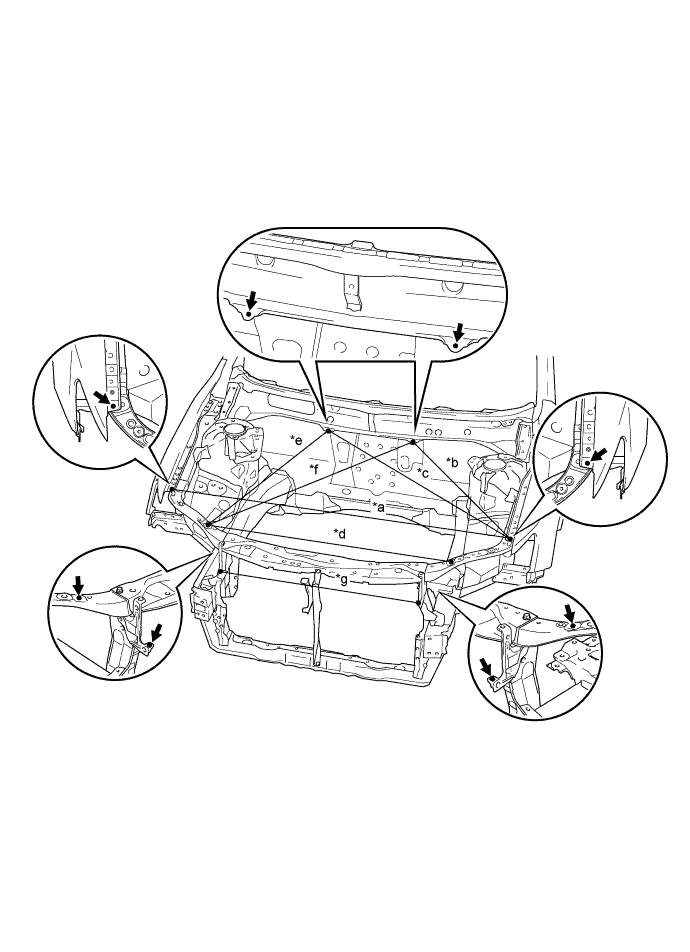

    Reference Value
    Area Measurement Area Measurement
    *a 1483 mm (58.39 in.) *b 822 mm (32.36 in.)
    *c 1125 mm (44.29 in.) *d 1042 mm (41.02 in.)
    *e 837 mm (32.95 in.) *f 1056 mm (41.57 in.)
    *g 849 mm (33.43 in.) - -
    A011ZWOE01
    A011ZU6E02
    A011ZS2E01
