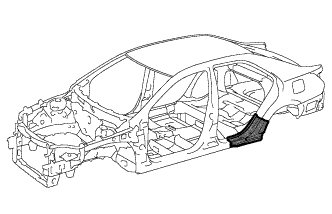

ROCKER REAR PANEL CUT AND JOIN REPLACEMENT SECTIONS

  1. REMOVAL

    Symbol meaning
    A011ZTV Remove Weld Points
    A011ZON Cut with Disc Sander etc.

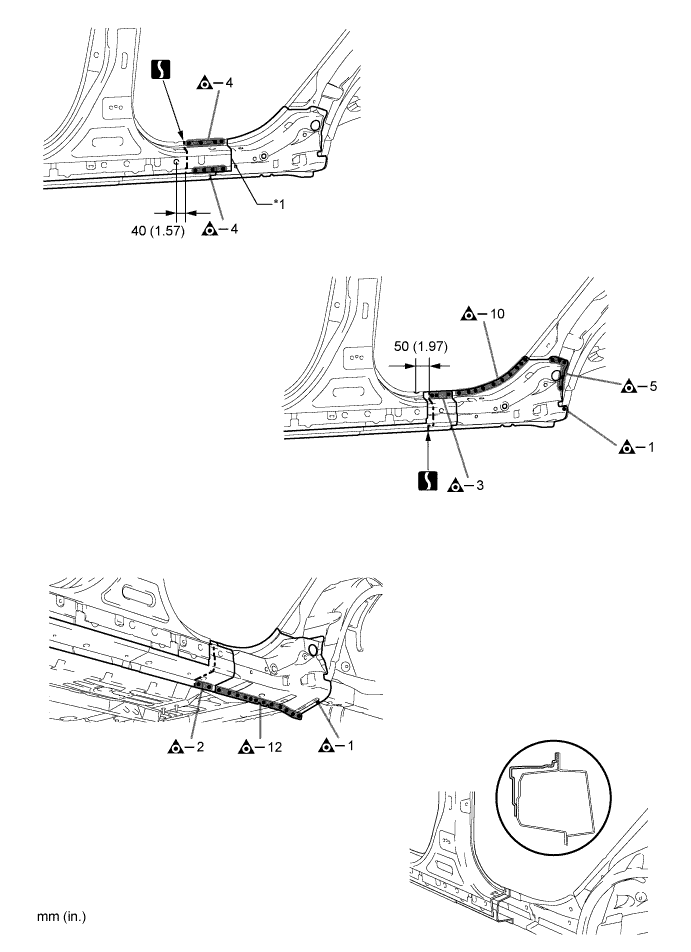

      REMOVAL POINT

    1. *1 is reused.

    A011ZUIE01

  2. INSTALLATION

    Symbol meaning
    A011ZRI Plug Weld
    A011ZON Cut and Join Location
    A011ZUN Butt Weld

      INSTALLATION POINT

    1. If the entire supply part is not needed, remove the part of the supply part that is needed.

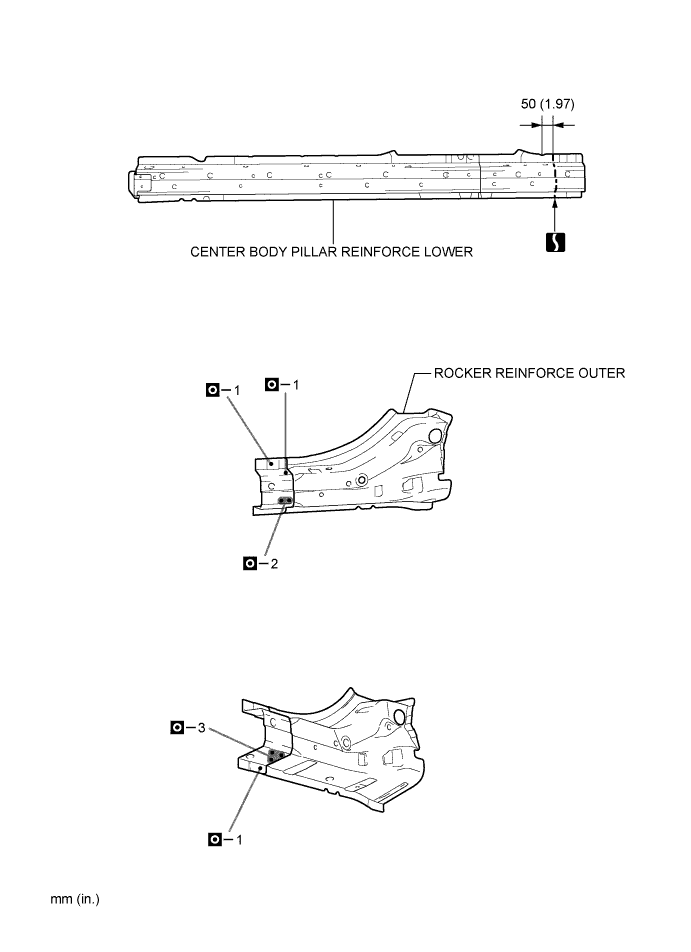

    2. Before temporarily installing the new parts, weld the center body pillar reinforce lower and rocker reinforce outer with the standard number of welding points.

    3. After welding the center body pillar reinforce lower and rocker reinforce outer to the vehicle side, install the *1.

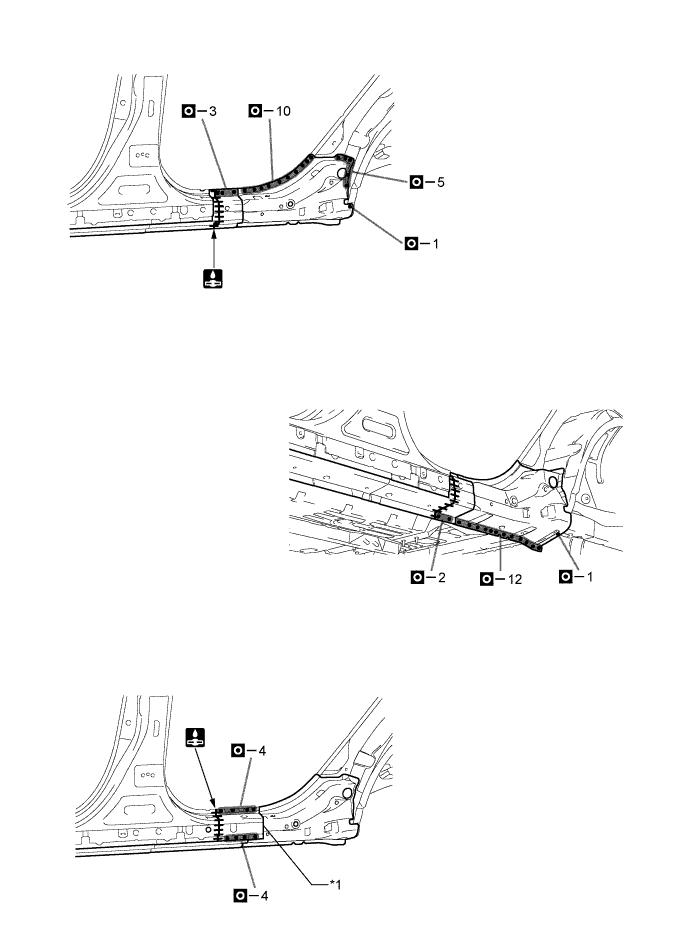

    4. After welding, apply body sealer to the corresponding parts. (See the painting / coating)

    5. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    A011ZP6E01
    A011ZW2E01
