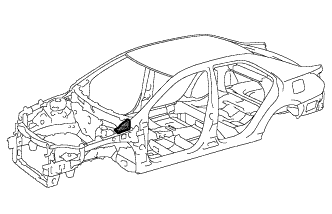

COWL TOP TO APRON BRACE ASSEMBLY REPLACEMENT

A011ZRR

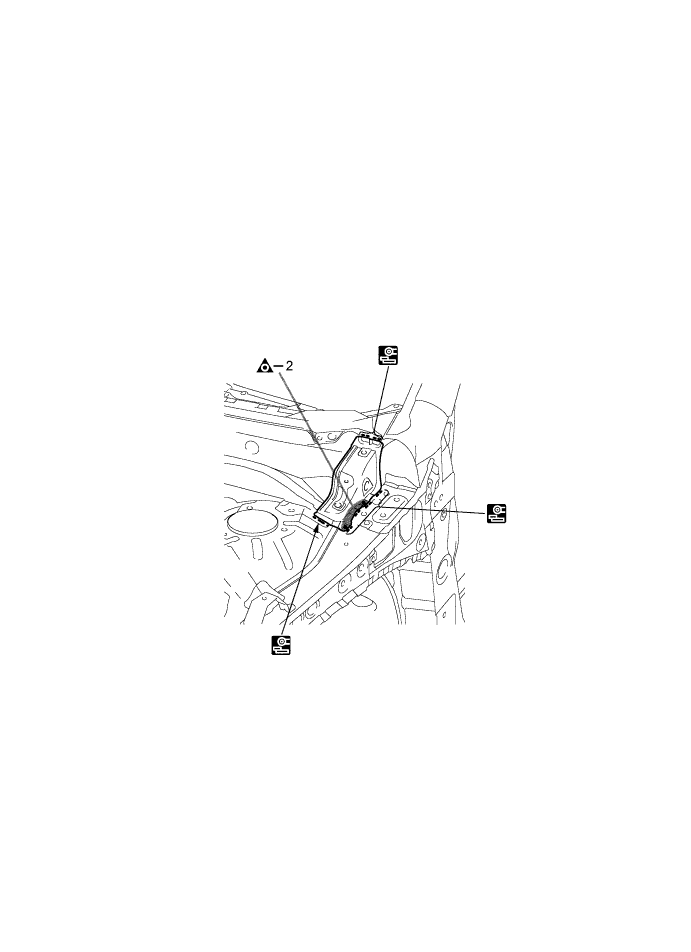

  1. REMOVAL

    Symbol meaning
    A011ZTV Remove Weld Points
    A011ZVQ Cut with Disc Sander etc.
    A011ZUKE01

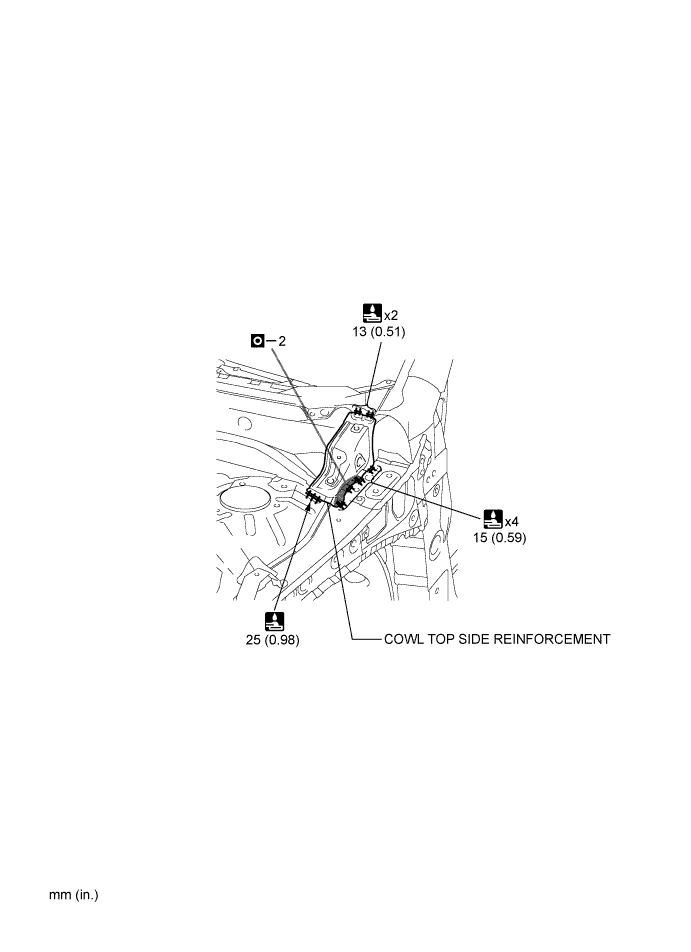

  2. INSTALLATION

    Symbol meaning
    A011ZRI Plug Weld
    A011ZQT Fillet Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. After welding, apply body sealer to the corresponding parts. (See the painting / coating)

    3. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

    A011ZQUE01
