REAR CENTER SEAT OUTER BELT ASSEMBLY INSTALLATION

Click here
Click here Click here
  1. Click here

    INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY


    1. Attach the claw to install the rear center seat outer belt.

    2. Install the 2 bolts.

      42 N*m 428 kgf*cm 31 ft.*lbf

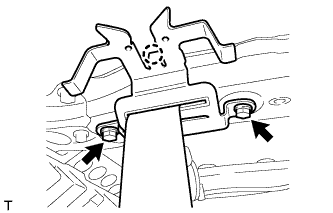

    3. A01IOSQ

      Attach the claw to install the seat belt guide.

    4. Install the 2 bolts.

      42 N*m 428 kgf*cm 31 ft.*lbf
  2. Click here

    INSTALL ROOF HEADLINING ASSEMBLY


    1. Install the roof headlining (Click here).

  3. Click here

    INSTALL SEAT BELT ANCHOR COVER


    1. Attach the 2 claws to install the seat belt anchor cover.

    2. Install the 2 screws.
