REAR NO. 2 SEAT ASSEMBLY DISASSEMBLY

Click here
Click here Click here
CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Click here
  1. Click here

    REMOVE NO. 2 SEAT HEADREST ASSEMBLY LH


    1. Remove the No. 2 seat headrest assembly LH.

  2. Click here

    REMOVE NO. 2 SEAT HEADREST ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  3. Click here

    REMOVE REAR SEAT CUSHION HINGE COVER


    1. A01IT2J

      Remove the screw.

    2. A01IPR1

      Remove the screw.

    3. Detach the 2 guides and remove the rear seat cushion hinge cover.

  4. Click here

    REMOVE REAR NO. 2 SEAT RECLINING COVER LH


    1. A01IO57

      Remove the screw.

    2. Detach the 2 hooks and remove the rear No. 2 seat reclining cover LH.

  5. Click here

    REMOVE REAR NO. 2 SEAT RECLINING COVER RH

    Tip:

    Use the same procedure described for the LH side.

  6. Click here

    REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH


    1. A01IP7B

      Detach the hooks.

    2. A01IQTOE01

      Detach the No. 2 seatback cover sub-assembly LH and No. 2 seatback pad LH from the seatback felt LH.

      Table 1. Text in Illustration
      *1 Seatback Felt

    3. Remove the 2 screws and detach the 3 claws.

    4. Detach the 2 hooks and remove the rear seatback board sub-assembly LH with the seatback felt LH.

    5. A01INEV

      Detach the 6 hooks and remove the rear seatback cloth LH from the rear seatback board sub-assembly LH.

  7. Click here

    REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  8. Click here

    REMOVE SEATBACK FELT LH


    1. A01ITAF

      Remove the seatback felt LH from the rear seatback board sub-assembly LH.

  9. Click here

    REMOVE SEATBACK FELT RH

    Tip:

    Use the same procedure described for the LH side.

  10. Click here

    REMOVE REAR NO. 2 SEAT HEADREST SUPPORT ASSEMBLY LH


    1. A01ISSZ

      Detach the 4 claws and remove the 2 rear No. 2 seat headrest supports assemblies.

  11. Click here

    REMOVE REAR NO. 2 SEAT HEADREST SUPPORT ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  12. Click here

    REMOVE REAR SEATBACK LOCK HOOK LH


    1. A01IU8HE01

      Using 2 clip removers, remove the 2 rear seatback lock hooks as shown in the illustration.

      Tip:

      • Tape the clip remover tips before use.

      • If the rear seatback lock hook is damaged, replace it with a new one.

      Table 2. Text in Illustration
      *1 Protective Tape
  13. Click here

    REMOVE REAR SEATBACK LOCK HOOK RH

    Tip:

    Use the same procedure described for the LH side.

  14. Click here

    REMOVE REAR NO. 2 SEATBACK COVER WITH PAD LH


    1. A01ISVQ

      Remove the rear No. 2 seatback cover with pad LH.

  15. Click here

    REMOVE REAR NO. 2 SEATBACK COVER WITH PAD RH

    Tip:

    Use the same procedure described for the LH side.

  16. Click here

    REMOVE NO. 2 SEATBACK COVER SUB-ASSEMBLY LH


    1. A01IN73

      Remove the hog rings.

    2. A01IPOJ

      Remove the hog rings and No. 2 seatback cover sub-assembly LH.

  17. Click here

    REMOVE NO. 2 SEATBACK COVER SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  18. Click here

    REMOVE REAR SEAT SIDE HINGE MALE COVER LH


    1. A01IO7P

      Remove the screw.

    2. Detach the hook and remove the rear seat side hinge male cover LH.

  19. Click here

    REMOVE REAR SEAT SIDE HINGE MALE COVER RH

    Tip:

    Use the same procedure described for the LH side.

  20. Click here

    REMOVE REAR SEAT INNER RECLINING COVER LH


    1. A01IRYA

      Detach the hook and remove the rear seat inner reclining cover LH.

  21. Click here

    REMOVE REAR SEAT INNER RECLINING COVER RH

    Tip:

    Use the same procedure described for the LH side.

  22. Click here

    REMOVE REAR NO. 2 SEAT CUSHION SPRING LH


    1. A01IPGL

      Detach the hook and remove the rear No. 2 seat cushion spring LH.

  23. Click here

    REMOVE REAR NO. 2 SEAT CUSHION SPRING RH

    Tip:

    Use the same procedure described for the LH side.

  24. Click here

    REMOVE REAR SEAT CUSHION SPACER LH

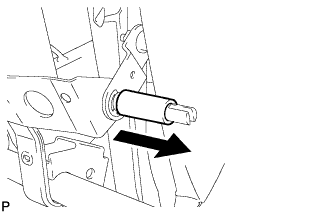

    1. A01ITAG

      Remove the rear seat cushion spacer LH.

  25. Click here

    REMOVE REAR SEAT CUSHION SPACER RH

    Tip:

    Use the same procedure described for the LH side.

  26. Click here

    REMOVE REAR NO. 2 SEAT CUSHION ASSEMBLY LH


    1. A01ITOR

      Remove the E-ring.

    2. Remove the bolt and spacer.

    3. A01ITY1

      Remove the spacer and No. 2 seat No. 1 suspension link.

    4. A01IO7Q

      Remove the E-ring.

    5. Remove the bolt and spacer.

    6. A01IN2C

      Remove the spacer and No. 2 seat No. 2 suspension link.

    7. A01IQVL

      Remove the nut and 2 bolts, and then remove the No. 2 seat cushion assembly LH together with the No. 2 seatback frame assembly LH.

    8. A01IN2W

      Using a T45 "TORX" socket wrench, remove the 2 "TORX" bolts together with the 2 spacers.

    9. Remove the rear No. 2 seat cushion assembly LH from the No. 2 seatback frame assembly LH.

  27. Click here

    REMOVE REAR NO. 2 SEAT CUSHION ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  28. Click here

    REMOVE REAR SEAT LOWER CUSHION HINGE COVER LH


    1. A01IOT9

      Detach the 2 claws and remove the rear seat lower cushion hinge cover LH.

  29. Click here

    REMOVE REAR SEAT LOWER CUSHION HINGE COVER RH


    1. A01ITF7

      Detach the 2 claws and remove the rear seat lower cushion hinge cover RH.

  30. Click here

    REMOVE NO. 2 SEAT CUSHION FRAME SUB-ASSEMBLY LH


    1. A01IPXV

      Remove the hog rings and open the No. 2 seat cushion cover sub-assembly LH.

    2. A01IQFM

      Remove the hog rings and open the No. 2 seat cushion cover sub-assembly LH.

    3. A01ITNO

      Remove the hog rings and open the No. 2 seat cushion cover sub-assembly LH.

    4. A01IREZ

      Remove the hog rings and open the No. 2 seat cushion cover sub-assembly LH.

    5. A01IRI3

      Detach the hooks.

    6. A01IQKOE01

      Pass the No. 2 seat cushion frame sub-assembly LH through the slits in the No. 2 seat cushion cover sub-assembly LH and remove the No. 2 seat cushion frame sub-assembly LH together with the rear seat cushion under cloth LH.

      Table 3. Text in Illustration
      *1 Slit
    7. A01IS07E01

      Pass the No. 2 seat cushion frame sub-assembly LH through the slits in the rear seat cushion under cloth LH and remove the rear seat cushion under cloth LH.

      Table 4. Text in Illustration
      *1 Slit
  31. Click here

    REMOVE NO. 2 SEAT CUSHION FRAME SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  32. Click here

    REMOVE NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY LH


    1. A01ISFX

      Remove the hog rings and No. 2 seat cushion cover sub-assembly LH.

  33. Click here

    REMOVE NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.

  34. Click here

    REMOVE 3RD SEAT STRAP LH


    1. A01IN3O

      Remove the screw and 3rd seat strap LH.

  35. Click here

    REMOVE 3RD SEAT STRAP RH

    Tip:

    Use the same procedure described for the LH side.

  36. Click here

    REMOVE REAR SEAT RECLINING CONTROL CABLE LH


    1. Cut off the cable tie.

    2. Detach the 2 clamps of the cable ends.

      Table 5. Text in Illustration
      *1 Cable Tie
      *2 Clamp

    3. Remove the rear seat reclining control cable LH in the order shown in the illustration.

  37. Click here

    REMOVE REAR SEAT RECLINING CONTROL CABLE RH

    Tip:

    Use the same procedure described for the LH side.

  38. Click here

    REMOVE SEAT SPRING SILENCER LH


    1. A01IQOH

      Remove the seat spring silencer LH.

  39. Click here

    REMOVE SEAT SPRING SILENCER RH

    Tip:

    Use the same procedure described for the LH side.

  40. Click here

    REMOVE REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY


    1. Cut off the cable tie.

    2. Detach the 3 clamps.

    3. Remove the 2 bolts and inner belt sub-assembly.

      Table 6. Text in Illustration
      *1 Cable Tie
  41. Click here

    REMOVE REAR NO. 2 SEAT PROTECTOR


    1. A01ISQ4

      Remove the rear No. 2 seat protector.
