SIDE TURN SIGNAL LIGHT ASSEMBLY REMOVAL


  1. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY LH

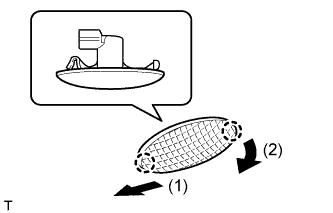

    1. A01IPSIE01

      Detach the 2 claws in the order shown in the illustration and remove the side turn signal light.

    2. Disconnect the connector.
