BATTERY INSTALLATION


  1. INSTALL AUXILIARY BATTERY


    1. Install the battery.

    2. Install the battery insulator.

    3. A01NJQEE01

      Connect the battery ventilation hose to the battery without kinking it.

      Tech Tips

      Push in the battery ventilation hose to the battery until a click sound is heard.

    4. A01NJ1F

      Install the battery clamp with the bolt and nut.

      Torque:
      Nut
      5.4 N*m  { 55 kgf*cm, 48 in.*lbf }
      Bolt
      5.4 N*m  { 55 kgf*cm, 48 in.*lbf }

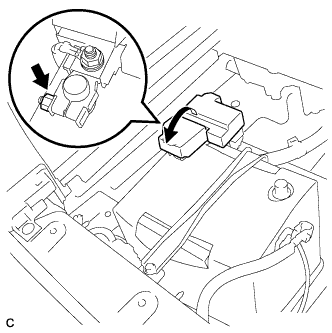

    5. A01NLKQE02

      Install the positive (+) battery terminal with the nut.

      Torque:
      6.4 N*m  { 65 kgf*cm, 57 in.*lbf }

    6. Install the battery terminal cap.

  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  3. INSTALL REAR FLOOR FINISH PLATE


    1. A01NMPW

      Engage the 6 clips, 2 claws and 2 guides, and install the rear floor finish plate.

  4. INSTALL REAR DECK FLOOR BOX


    1. A01NIBL

      Install the rear deck floor box with the 3 clips.

  5. INSTALL SPARE WHEEL COVER ASSEMBLY (for Compact Spare Tire)


    1. Install the spare wheel cover assembly.
