REAR COMBINATION LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE


  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

  2. REMOVE REAR FLOOR FINISH PLATE


    1. A004HPJ

      Using a clip remover, remove the 3 clips.

    2. Disengage the 4 claws to remove the rear floor finish plate.

  3. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH (w/ Side Marker Light)

    Click here

  4. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH (w/o Side Marker Light)


    1. A004IUC

      Using a clip remover, remove the 5 clips and the luggage compartment inner trim cover LH.

  5. REMOVE REAR COMBINATION LIGHT ASSEMBLY

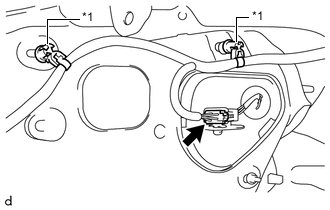

    1. A004K36E01
      Text in Illustration
      *1 Grommet

      Disconnect the connector.

    2. Disengage the 2 grommets and disconnect the wire harness.

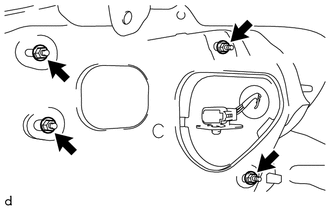

    3. A004J2O

      Remove the 4 nuts.

    4. A004IZ7

      Disengage the guide to remove the rear combination light assembly.
