LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH INSPECTION

CAUTION / NOTICE / HINT

Tech Tips

Use the same procedure for the LHD and RHD vehicles.

PROCEDURE


  1. INSPECT LUGGAGE DOOR OPENING SWITCH ASSEMBLY

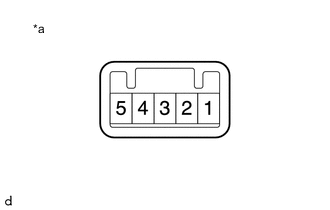

    1. A004KC6E01
      Text in Illustration
      *a

      Component without harness connected

      (Luggage Door Opening Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Measurement Condition Switch Condition Specified Condition
      4 - 1 Pushed (ON) Below 1 Ω
      4 - 1 Not pushed (OFF) 10 kΩ or higher

    2. Apply battery voltage to the connector and check that the luggage door opening switch light comes on.

      OK:
      Tester Condition Condition Specified Condition

      Battery positive (+) → Terminal 3

      Battery negative (-) → Terminal 2

      		 Always Luggage door opening switch light comes on

      If the result is not as specified, replace the luggage door opening switch assembly.
