UNLOCK WARNING SWITCH REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicle.

PROCEDURE


  1. REMOVE INSTRUMENT SIDE PANEL LH

    Click here

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Click here

  3. REMOVE METER HOOD SUB-ASSEMBLY

    Click here

  4. REMOVE UPPER INSTRUMENT PANEL METER ORNAMENT

    Click here

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/o Knee Airbag)

    Click here

  6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)

    Click here

  7. REMOVE LOWER STEERING COLUMN COVER

    Click here

  8. REMOVE UPPER STEERING COLUMN COVER

    Click here

  9. REMOVE UN-LOCK WARNING SWITCH ASSEMBLY

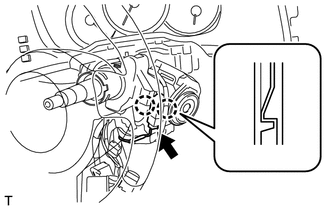

    1. A004HKF

      Disconnect the un-lock warning switch assembly connector.

    2. Detach the 2 claws and remove the un-lock warning switch assembly.
