STEERING ANGLE SENSOR REMOVAL

PROCEDURE


  1. REMOVE STEERING WHEEL ASSEMBLY

    Click here

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

  3. INSPECT SPIRAL CABLE SUB-ASSEMBLY

    Click here

  4. REMOVE INSTRUMENT SIDE PANEL (w/o Knee Airbag)

    Click here

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/o Knee Airbag)

    Click here

  6. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)

    Click here

  7. REMOVE INSTRUMENT PANEL ORNAMENT (w/ Large Ornament Panel)

    Click here

  8. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/o Large Ornament Panel)

    Click here

  9. REMOVE METER HOOD SUB-ASSEMBLY

    Click here

  10. REMOVE UPPER INSTRUMENT PANEL METER ORNAMENT

    Click here

  11. REMOVE STEERING COLUMN COVER SUPPORT (w/ Entry and Start System)

    Click here

  12. REMOVE LOWER STEERING COLUMN COVER

    Click here

  13. REMOVE UPPER STEERING COLUMN COVER

    Click here

  14. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Click here

  15. REMOVE STEERING SENSOR

    Note


    • Remove the steering sensor from the spiral cable sub-assembly only when replacing it or the steering sensor.

    • Do not rotate the center section of the steering sensor, as it may deviate from the steering sensor neutral point.

    • When replacing the spiral cable sub-assembly: Click here

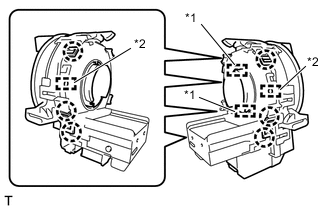

    1. A004H2BE01
      Text in Illustration
      *1 Guide
      *2 Pin

      Disengage the 6 claws, 2 pins and 2 guides to remove the spiral cable sub-assembly from the steering sensor.

      Note

      Do not damage the guide and claw.
