STEERING ANGLE SENSOR COMPONENTS

ILLUSTRATION

A004IBIE02

ILLUSTRATION

A004KAPE02

ILLUSTRATION

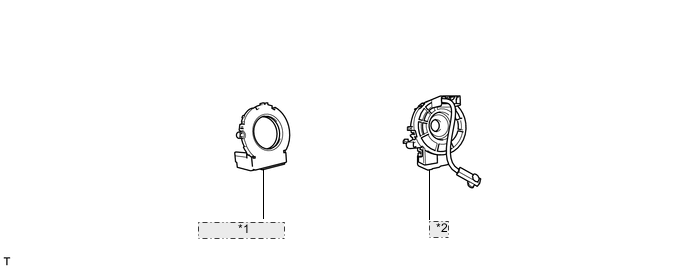

A004HSRE04
for Single Airbag System
*1 STEERING SENSOR
*2 SPIRAL CABLE SUB-ASSEMBLY

ILLUSTRATION

A004KMRE02

ILLUSTRATION

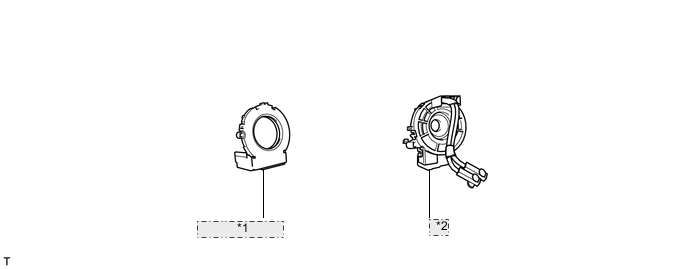

A004H74E08
for Dual Airbag System
*1 STEERING SENSOR
*2 SPIRAL CABLE SUB-ASSEMBLY
