HORN REMOVAL


  1. REMOVE ENGINE ROOM SIDE COVER


    1. A01FSOM

      Remove the 4 clips and engine room side cover.

  2. REMOVE COOL AIR INTAKE DUCT SEAL


    1. A01FQQK

      Remove the 7 clips and cool air intake duct seal.

  3. REMOVE HIGH PITCHED HORN ASSEMBLY

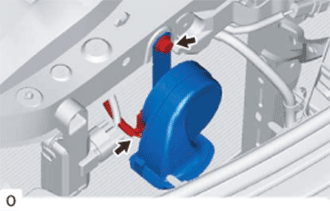

    1. A01FPZZ

      Disconnect the connector.

    2. Remove the bolt and high pitched horn assembly.

  4. REMOVE LOW PITCHED HORN ASSEMBLY


    1. A01FUT2

      Disconnect the connector.

    2. Remove the bolt and low pitched horn assembly.
