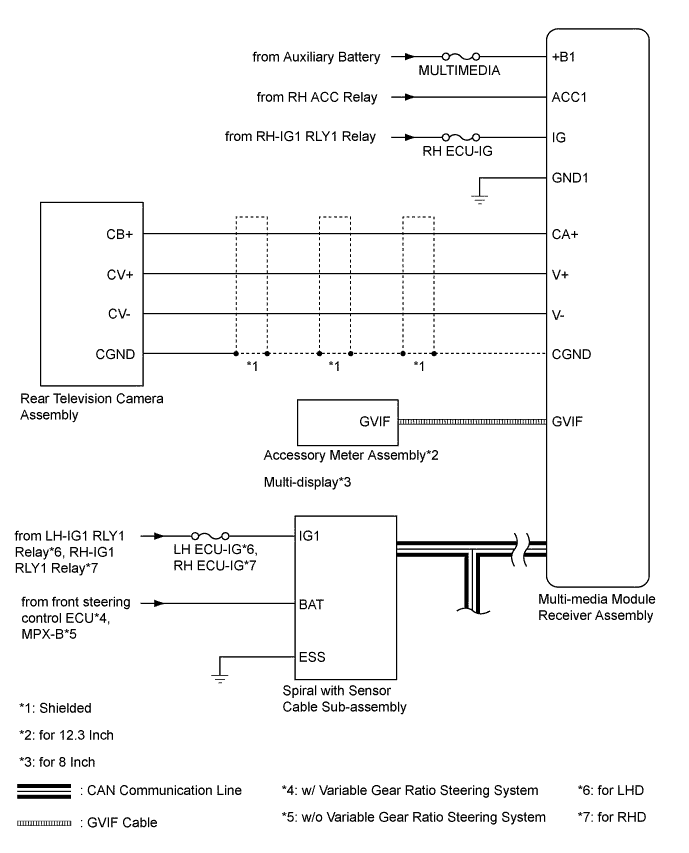

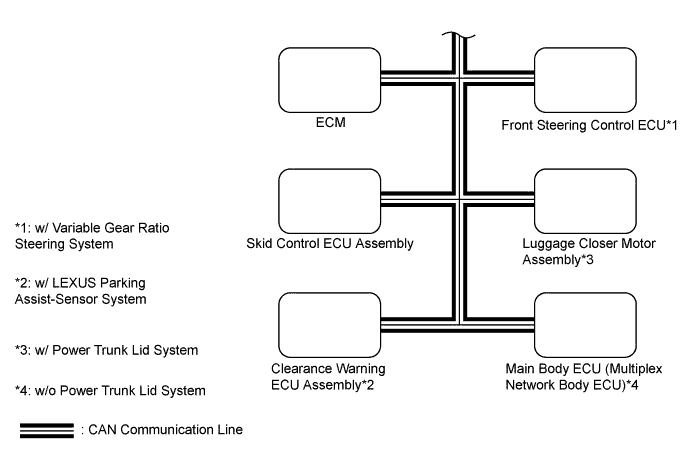

PARKING ASSIST MONITOR SYSTEM SYSTEM DIAGRAM
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Skid Control ECU Assembly | Multi-media Module Receiver Assembly | Vehicle speed signal | CAN |
| ECM | Multi-media Module Receiver Assembly | Shift position signal | CAN |
| Spiral with Sensor Cable Sub-assembly | Multi-media Module Receiver Assembly |
|
CAN |
| Main Body ECU (Multiplex Network Body ECU)*1 | Multi-media Module Receiver Assembly | Back door courtesy light switch signal | CAN |
| Luggage Closer Motor Assembly*2 | |||
| Clearance Warning ECU Assembly*3 | Multi-media Module Receiver Assembly | Clearance detection data signal | CAN |
| Front Steering Control ECU*4 | Multi-media Module Receiver Assembly | VGRS relative angle signal | CAN |
| Multi-media Module Receiver Assembly | Accessory Meter Assembly*5 Multi-display*6 |
Display | GVIF |
-
*1: w/o Power Trunk Lid System
-
*2: w/ Power Trunk Lid System
-
*3: w/ LEXUS Parking Assist-sensor System
-
*4: w/ Variable Gear Ratio Steering System
-
*5: for 12.3 Inch
-
*6: for 8 Inch
