ELECTRIC PARKING BRAKE ACTUATOR REMOVAL


  1. RELEASE PARKING BRAKE


    1. With the power switch on (IG), operate the electric parking brake switch to release the parking brake. Then turn the power switch off.

      Tech Tips

      If the parking brake cannot be released, use the luggage compartment's parking brake release tool to manually release the parking brake.

  2. PRECAUTION

    Note

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work Click here.

  3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT


    1. Remove the luggage compartment floor mat.

  4. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH


    1. Remove the luggage compartment trim cover LH.

  5. DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  6. REMOVE REAR WHEEL

  7. DISCONNECT WIRE HARNESS


    1. A01FSRF

      Remove the bolt and parking brake plunger protector.

    2. Disconnect the connector.

    3. Disconnect the harness clamp.

    4. Detach the trunk interior electric parking brake actuator grommet.

  8. REMOVE NO. 1 FLOOR UNDER COVER


    1. A01FRBM

      Remove the 4 clips, 6 nuts and No. 1 floor under cover.

  9. DISCONNECT PARKING BRAKE CABLE

    Click here

  10. REMOVE PARKING BRAKE CABLE HEAT INSULATOR


    1. A01FS9N

      for Type B:

      Remove the 2 nuts and parking brake cable heat insulator.

  11. REMOVE ELECTRIC PARKING BRAKE ACTUATOR CAP


    1. A01FUHW

      for Type A:

      Remove the 2 nuts and electric parking brake actuator cap.

    2. for Type B:


      1. A01FROB

        Remove the 2 nuts and electric parking brake actuator cap.

      2. Remove the nut and cable support bracket.

  12. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

    Click here

  13. REMOVE PARKING BRAKE WITH BRACKET ACTUATOR ASSEMBLY

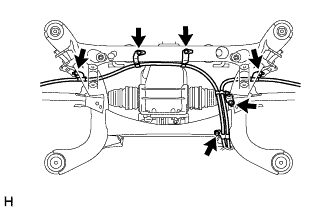

    1. A01FSA3

      Remove the 6 bolts.

    2. Disconnect the 6 parking brake cable support brackets from the rear suspension member sub-assembly.

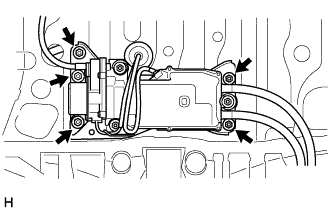

    3. A01FUOH

      for Type A:

      Remove the 5 nuts and parking brake with bracket actuator assembly.

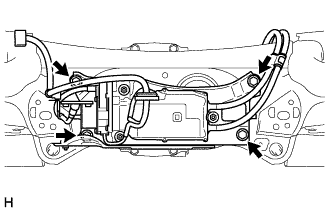

    4. A01FULM

      for Type B:

      Remove the 4 bolts and parking brake with bracket actuator assembly.
