STEERING PAD SWITCH INSPECTION


  1. INSPECT STEERING PAD SWITCH ASSEMBLY


    1. Inspect the pad switch.


      1. Measure the resistance according to the value(s) in the table below.

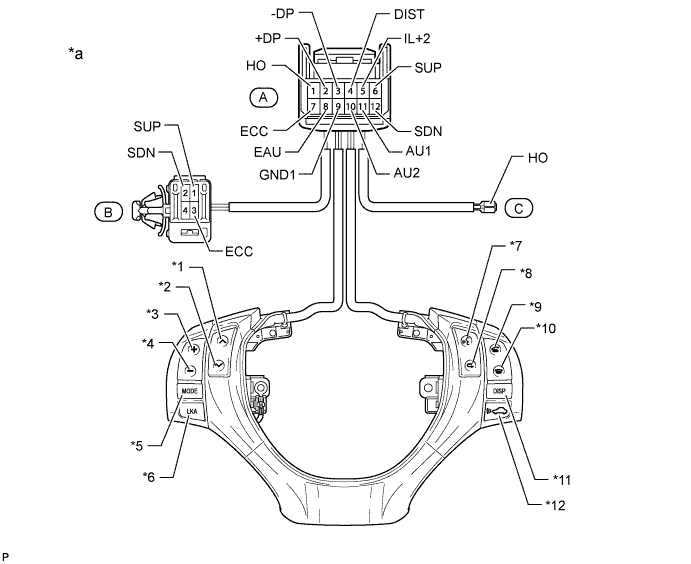

        A01FIEQE01
        Text in Illustration
        *1 Seek+ Switch *2 Seek- Switch
        *3 Volume+ Switch *4 Volume- Switch
        *5 MODE Switch *6 Lane Keeping Assist Switch
        *7 Voice Switch *8 Return Switch
        *9 Off Hook Switch *10 On Hook Switch
        *11 DISP Switch *12 Distance Control Switch
        *a

        Component without harness connected

        (Steering Pad Switch Assembly)

        		 - -
        Standard Resistance
        Tester Connection Switch Condition Specified Condition
        A11 (AU1) - A8 (EAU) No switch pushed 95 to 105 kΩ
        Seek+ switch pushed Below 2.5 Ω
        Seek- switch pushed 313 to 345 Ω
        Volume+ switch pushed 950 to 1050 Ω
        Volume- switch pushed 2955 to 3265 Ω
        A10 (AU2) - A8 (EAU) No switch pushed 95 to 105 kΩ
        MODE switch pushed Below 2.5 Ω
        Return Switch pushed 313 to 345 Ω
        On hook switch pushed 313 to 345 Ω
        Off hook switch pushed 950 to 1050 Ω
        Voice switch pushed 2955 to 3265 Ω
        A2 (+DP) - A3 (-DP) No switch pushed 1 MΩ
        DISP switch pushed Below 2.5 Ω
        A4 (DIST) - A7 (ECC) No switch pushed 1 MΩ
        Distance control switch pushed Below 2.5 Ω
        Lane Keeping Assist Switch pushed 228 to 252 Ω
        A1 (HO) - C (HO) Always Below 1 Ω
        A6 (SUP) - B1 (SUP) Always Below 1 Ω
        A12 (SDN) - B2 (SDN) Always Below 1 Ω
        A7 (ECC) - B3 (ECC) Always Below 1 Ω

        If the result is not as specified, replace the steering pad switch assembly.

    2. Check the illumination.


      1. Connect the battery positive (+) lead to terminal A5 (IL+2) and the negative (-) lead to terminal A3 (-DP) of the steering pad switch assembly connector.

      2. Check that the switch illumination comes on.

        OK
        Steering pad switch illumination comes on.

        If the result is not as specified, replace the steering pad switch assembly.
