STEERING COLUMN ASSEMBLY REASSEMBLY

Note

When using a vise, do not overtighten it.


  1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU


    1. Connect the connector to the multiplex tilt and telescopic ECU.

    2. Install the multiplex tilt and telescopic ECU with the 2 bolts.

  2. INSTALL STEERING ACTUATOR ASSEMBLY

    Tech Tips

    When replacing the steering lock actuator assembly, refer to the Service Bulletin.


    1. Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.

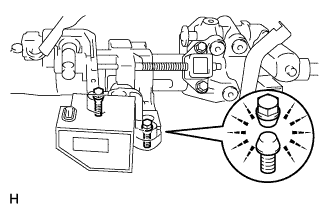

    2. A01FH09

      Tighten the 2 tapered-head bolts until the bolt heads break off.
