FRONT BRAKE FLEXIBLE HOSE REMOVAL

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.


  1. REMOVE FRONT WHEEL

  2. DRAIN BRAKE FLUID

    Note

    Wash off the brake fluid immediately if it comes into contact with a painted surface.

  3. REMOVE FRONT BRAKE FLEXIBLE HOSE


    1. A01FDCF

      Remove the union bolt and gasket.

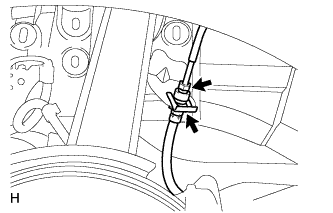

    2. A01FD8N

      Disconnect the brake tube from the flexible hose with a union nut wrench while holding the flexible hose with a wrench.

      Note


      • Do not bend or damage the brake tube.

      • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting point.

    3. Remove the clip.

    4. Remove the front brake flexible hose.
