BRAKE BOOSTER INSPECTION


  1. INSPECT BRAKE VACUUM CHECK VALVE ASSEMBLY

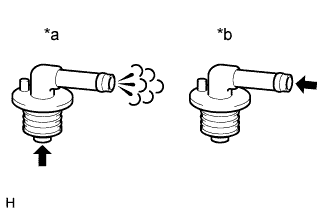

    1. A01FENRE01
      Text in Illustration
      *a Ventilation
      *b No Ventilation

      Check that there is ventilation from the booster to the engine and no ventilation from the engine to the booster.

      If the result is not as specified, replace the brake vacuum check valve assembly.
