ELECTRIC PARKING BRAKE SYSTEM PARTS LOCATION

ILLUSTRATION

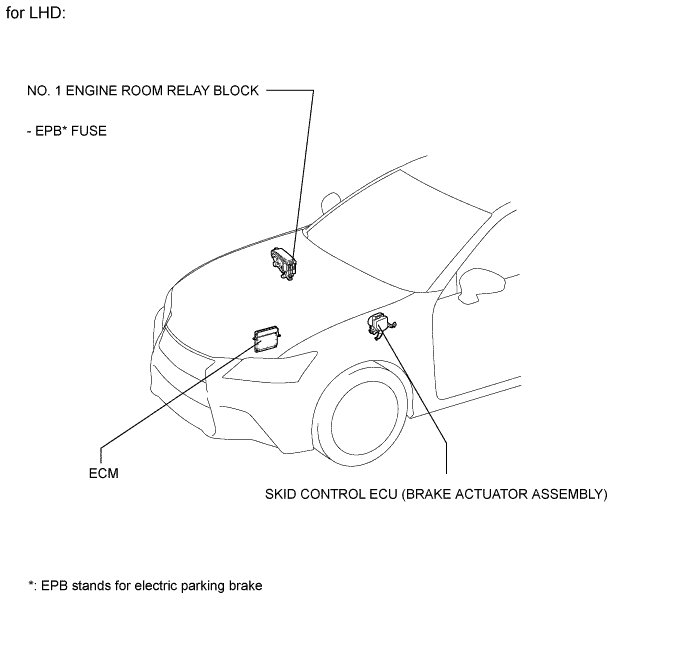

A01FEVME02

ILLUSTRATION

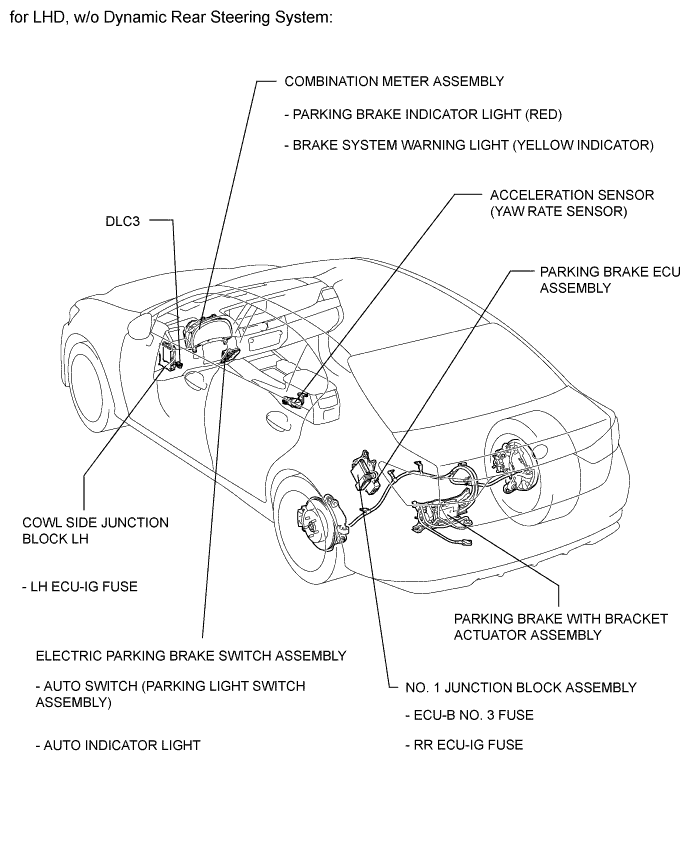

A01FDD8E02

ILLUSTRATION

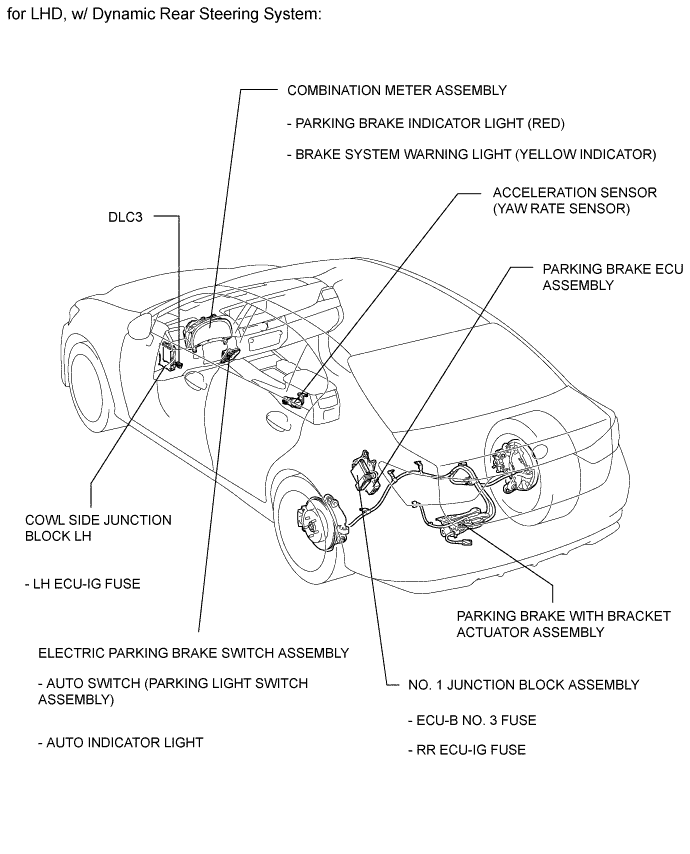

A01FFILE02

ILLUSTRATION

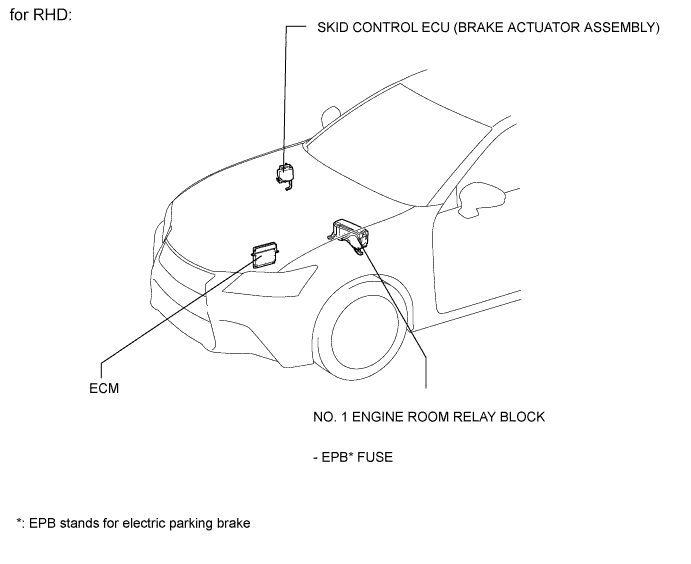

A01FGREE01

ILLUSTRATION

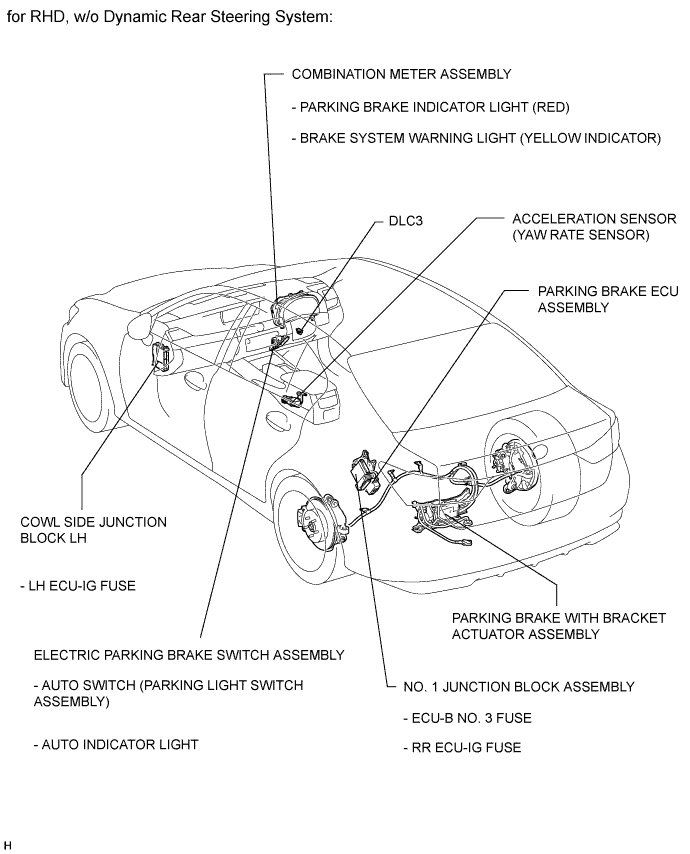

A01FG4PE01

ILLUSTRATION

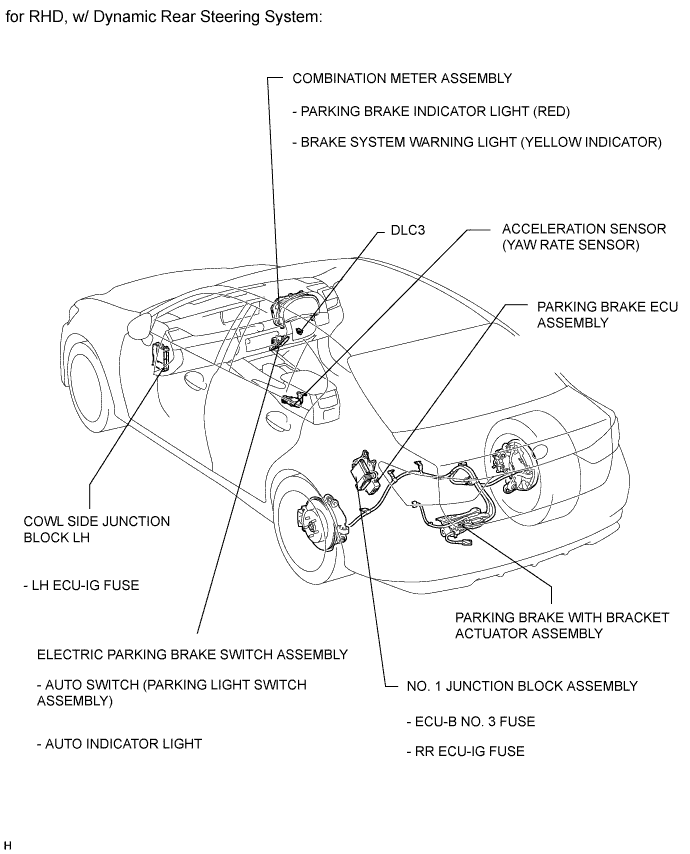

A01FDZ4E01
