BRAKE MASTER CYLINDER REASSEMBLY

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.


  1. INSTALL BRAKE MASTER CYLINDER RESERVOIR STRAINER


    1. Install the brake master cylinder reservoir strainer to the brake master cylinder reservoir assembly.

  2. INSTALL BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY


    1. Install the brake master cylinder reservoir filler cap assembly to the brake master cylinder reservoir assembly.

  3. INSTALL BRAKE FLUID INFORMATION LABEL

  4. INSTALL MASTER CYLINDER RESERVOIR GROMMET

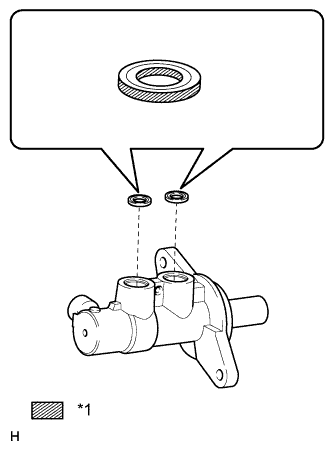

    1. A01FF5IE01
      Text in Illustration
      *1 Lithium soap base glycol grease

      Apply a light coat of lithium soap base glycol grease to 2 new master cylinder reservoir grommets, and then install them to the brake master cylinder reservoir assembly.

  5. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY


    1. Install the brake master cylinder reservoir to the brake master cylinder body.

    2. Using a pin punch and hammer, install a pin to the brake master cylinder reservoir.
