REAR SPEED SENSOR REMOVAL

Tech Tips


  • Other than areas where instructions are provided, use the same procedures for the RH and LH sides.

  • The procedures listed below are for LH side.


  1. REMOVE REAR WHEEL

  2. REMOVE REAR WHEEL HOUSE LINER LH


    1. A01FGBX

      Remove the 9 nuts, 4 clips, 3 screws and rear wheel house liner LH.

  3. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER LH

    Click here

  4. REMOVE REAR SPEED SENSOR LH


    1. Disconnect the connector.

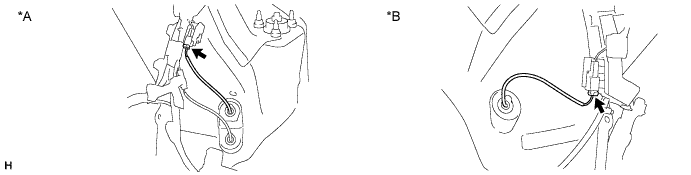

      A01FFERE01
      Text in Illustration
      *A for LH Side *B for RH Side

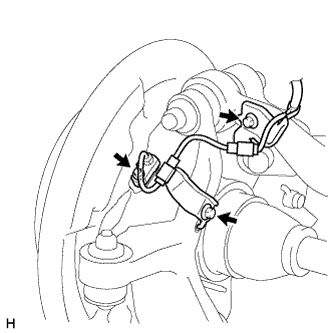

    2. A01FGD4

      Remove the 2 bolts and 2 harness clamps.

    3. Remove the bolt and rear speed sensor LH from the rear axle.

      Note

      Prevent foreign matter from attaching to the sensor tip.

    4. A01FGQ9

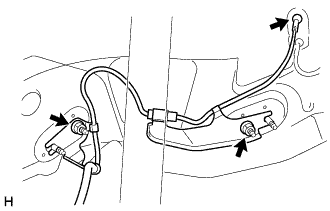

      Remove the 2 nuts and 2 harness clamps.

    5. Disconnect the grommet of the rear speed sensor LH from the hole of the wheel house.

    6. Remove the rear speed sensor LH.

      Note

      Prevent foreign matter from attaching to the sensor tip.
