FRONT SPEED SENSOR (for AWD) REMOVAL

Tech Tips


  • Other than areas where instructions are provided, use the same procedures for the RH and LH sides.

  • The procedures listed below are for LH side.


  1. REMOVE FRONT WHEEL

  2. REMOVE FRONT SPEED SENSOR LH


    1. A01FHR3

      Remove the 3 bolts and 2 harness clamps.

    2. A01FFG8

      Partially remove the front fender liner.

    3. Remove the 2 bolts and 2 harness clamps.

    4. Disconnect the connector.

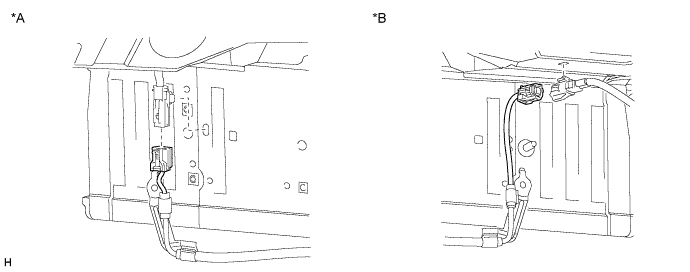

      A01FDTYE01
      Text in Illustration
      *A for LH Side *B for RH Side

    5. Remove the front speed sensor LH.

      Note

      Prevent foreign matter from attaching to the sensor tip.
