BRAKE ACTUATOR REASSEMBLY


  1. INSTALL BRAKE ACTUATOR BOLT CUSHION


    1. Install the 3 brake actuator bolt cushions to the brake actuator bracket.

  2. INSTALL BRAKE ACTUATOR CASE COLLAR


    1. Install the 3 brake actuator case collars to the brake actuator bolt cushions.

      Note

      Make sure the collars are in full contact with the cushions.

  3. INSTALL BRAKE ACTUATOR BRACKET ASSEMBLY

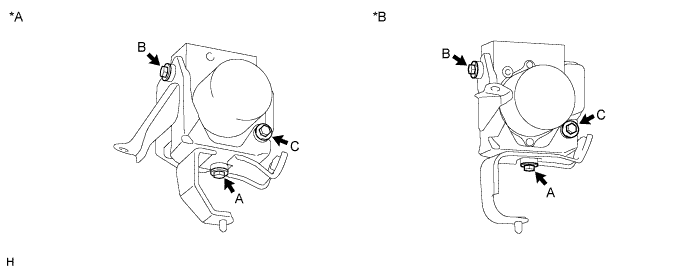

    1. Install the brake actuator bracket to the brake actuator with the 3 bolts. tighten the 3 bolts uniformly in alphabetical order.

      A01FFF1E02
      Text in Illustration
      *A for LHD *B for RHD
      Torque:
      5.4 N*m  { 55 kgf*cm, 48 in.*lbf }

      Note


      • Do not remove the hole plugs of a new brake actuator before connecting the 6 brake lines because the brake actuator is filled with brake fluid.

      • Do not hold the actuator by the connector.

      • If the actuator is dropped, replace it.
