FUEL TANK CAP (w/ Canister Pump Module) INSPECTION


  1. INSPECT FUEL TANK CAP ASSEMBLY


    1. A01FDEQE15

      Visually check that the cap and gasket are not deformed or damaged.

      Text in Illustration
      *1 Gasket

      If the result is not as specified, replace the fuel tank cap assembly.

      Note

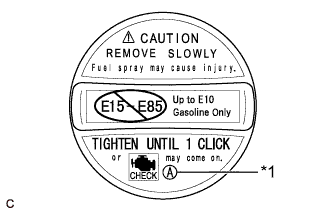

      A01FE9SE01

      Confirm that ID mark A is printed on the replacement fuel tank cap.

      Text in Illustration
      *1 ID Mark
