FUEL INJECTOR (for Port Injection) INSTALLATION

Tech Tips

w/ Canister Pump Module:

Perform "Inspection After Repairs" after replacing the fuel injector assembly Click here.


  1. INSTALL FUEL INJECTOR ASSEMBLY

    Tech Tips

    w/ Canister Pump Module:

    Perform "Inspection After Repairs" after replacing the fuel injector assembly Click here.


    1. Apply gasoline to 2 new O-rings and install them to the injector.

      Note

      Check that there is no damage or foreign material in the groove of the injector when installing the injector's O-rings.

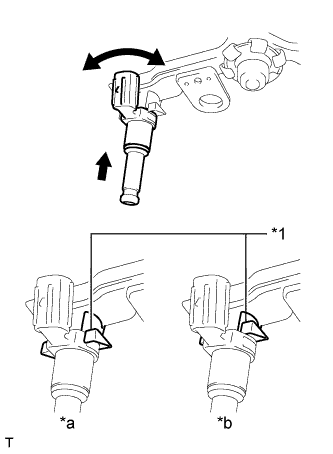

    2. A01FF34E05
      Text in Illustration
      *1 Plastic Stopper
      *a CORRECT
      *b INCORRECT

      Install the fuel injector assemblies to the fuel delivery pipe sub-assembly.

      Note


      • When the injector does not rotate smoothly, the O-ring may be pinched. Remove the injector and install a new O-ring to the injector.

      • Make sure that the injector is located within the plastic stopper range as shown in the illustration.

  2. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY


    1. Install the 4 delivery pipe spacers to the intake manifold.

    2. A01FFHI

      Install the delivery pipe sub-assembly (with injector) to the intake manifold.

      Note

      When the injector does not rotate smoothly, the O-ring may be pinched. Remove the injector and install a new O-ring to the injector.

      Text in Illustration
      A01FGIV Turn

    3. Install the fuel injector assembly to the fuel delivery pipe sub-assemblies with the 4 bolts.

      Torque:
      17 N*m  { 173 kgf*cm, 13 ft.*lbf }

    4. Connect the 6 injector connectors and 2 clamps.

    5. Connect the No. 2 fuel tube sub-assembly to the fuel delivery pipe sub-assembly Click here.

    6. A01FHIXE04
      Text in Illustration
      *1 Mark

      After connecting the fuel tube, align the paint marks on the delivery pipe.

  3. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

    Click here
