REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (for 2GR-FSE) REPLACEMENT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.


  1. DRAIN DIFFERENTIAL OIL


    1. Stop the vehicle on a level place.

    2. A01FH9NE01

      for Front Differential:


      1. Remove the engine under cover.

      2. Remove the filler plug and gasket.

      3. Remove the drain plug and gasket, and drain the oil.

      4. Install a new gasket and the drain plug.

        Torque:
        39 N*m  { 400 kgf*cm, 29 ft.*lbf }

    3. for Rear Differential:


      1. Using a 10 mm hexagon wrench, remove the filler plug and gasket.

        A01FEQGE01
        Text in Illustration
        *A for 2GR-FSE *B for 4GR-FSE

      2. Using a 10 mm hexagon wrench, remove the drain plug and gasket, and drain the oil.

        A01FDD6E01
        Text in Illustration
        *A for 2GR-FSE *B for 4GR-FSE

      3. Install a new gasket and the drain plug.

        Torque:
        49 N*m  { 500 kgf*cm, 36 ft.*lbf }

  2. REMOVE REAR DRIVE SHAFT ASSEMBLY

    Click here

  3. REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL


    1. A01FFKSE02
      Text in Illustration
      *1 Rear Differential Side Gear Shaft Oil Seal

      Using SST, remove the rear differential side gear shaft oil seal.

      SST
      09308-00010

  4. INSTALL REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

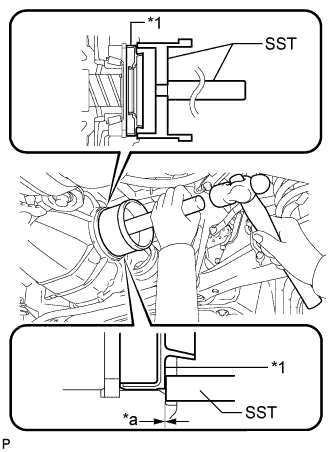

    1. A01FFGAE02
      Text in Illustration
      *1 Rear Differential Side Gear Shaft Oil Seal
      *a -0.5 to 0.5 mm (-0.0197 to 0.0196 in.)

      Using SST and a hammer, install a new rear differential side gear shaft oil seal.

      SST
      09223-15030
      09950-70010   ( 09951-07200 )
      Oil seal installation depth
      -0.5 to 0.5 mm (-0.0197 to 0.0196 in.)

      Note


      • Make sure to check the identification marks on the oil seals before installation because the part numbers differ between the left and right sides.

      • To ensure a proper seal, evenly tap in the rear differential side gear shaft oil seal.

      • When installing the oil seal, tap it in until its surface is flush with the rear differential carrier.

  5. INSTALL REAR DRIVE SHAFT ASSEMBLY

    Click here

  6. ADD DIFFERENTIAL OIL


    1. A01FGI8E51
      Text in Illustration
      *a 0 to 5 mm (0 to 0.196 in.)

      Add differential oil so that the oil level is within 5 mm (0 to 0.196 in.) of the bottom lip of the differential filler plug hole.

      Note


      • Too much or too little oil will lead to differential problems.

      • After changing the oil, drive the vehicle and then check the oil level again.

    2. for Front Differential:

      Oil type
      Hypoid gear oil API GL-5 or equivalent
      Recommended Viscosity
      Temperature Viscosity
      Above -18°C (0°F) SAE 90
      Below -18°C (0°F) SAE 80W or 80W-90
      Standard Differential Oil Capacity
      0.65 to 0.75 liters (0.69 to 0.79 US qts, 0.58 to 0.66 Imp. qts)

      1. Using a 10 mm hexagon wrench, install a new gasket and the filler plug.

        Torque:
        39 N*m  { 400 kgf*cm, 29 ft.*lbf }

      2. Install the engine under cover.

    3. for Rear Differential:

      Oil type and viscosity
      Toyota genuine differential gear oil LT 75W-85 GL-5 or equivalent
      Standard Differential Oil Capacity
      Engine Specified Condition
      2GR-FSE 1.30 to 1.40 liters (1.38 to 1.47 US qts, 1.15 to 1.23 Imp. qts)
      4GR-FSE 1.10 to 1.20 liters (1.17 to 1.26 US qts, 0.97 to 1.05 Imp. qts)

      1. Install a new gasket and the filler plug.

        Torque:
        49 N*m  { 500 kgf*cm, 36 ft.*lbf }
