REAR COMBINATION LIGHT ASSEMBLY REASSEMBLY


  1. INSTALL REAR COMBINATION LIGHT BRACKET


    1. A01EUCP

      Install the rear combination light bracket with the 2 screws.

  2. INSTALL REAR BUMPER UPPER SIDE RETAINER

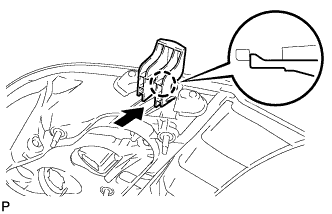

    1. A01EU8K

      Engage the claw to install the rear bumper upper side retainer as shown in the illustration.

  3. INSTALL TAIL AND STOP LIGHT BULB


    1. Install the tail and stop light bulb to the tail and stop light socket.

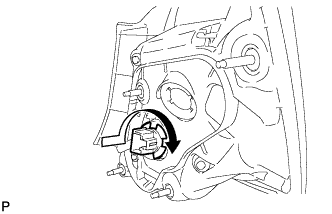

    2. A01EWRD

      Turn the tail and stop light socket with the tail and stop light bulb in the direction indicated by the arrow shown in the illustration to install them as a unit.

  4. INSTALL REAR TURN SIGNAL LIGHT BULB


    1. Install the rear turn signal light bulb to the rear turn signal light socket.

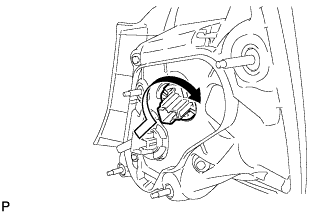

    2. A01EVTN

      Turn the rear turn signal light socket with the rear turn signal light bulb in the direction indicated by the arrow shown in the illustration to install them as a unit.

  5. INSTALL REAR COMBINATION LIGHT PACKING


    1. A01EV0B

      Install a new rear combination light packing.
