WASHER LEVEL WARNING SWITCH INSTALLATION


  1. INSTALL LEVEL WARNING SWITCH ASSEMBLY

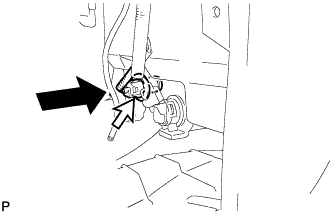

    1. A01ETR7

      Install the level warning switch assembly as shown in the illustration.

    2. Connect the connector.

      Note

      Be careful when installing the level warning switch assembly. If the level warning switch assembly is dropped, replace it with a new one.

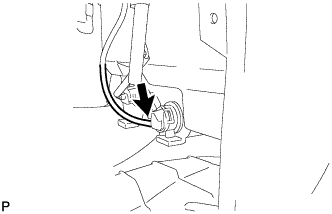

    3. A01EUDZ

      Connect the washer hose to the windshield washer motor and pump assembly.

  2. ADD WASHER FLUID


    1. Add washer fluid to the washer jar.

  3. INSTALL FRONT FENDER LINER RH


    1. Install the front fender liner RH with the 4 clips and 5 screws.

    2. Install 2 new grommets.

    3. A01EYWJE02
      Text in Illustration
      *1 Clip
      *2 Pin Hold Clip
      *a Correct
      *b Incorrect

      Install the pin hold clip as shown in the illustration.

      Note

      Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is aligned vertically.

    4. Install the clip.

  4. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH


    1. Install the front wheel opening extension pad RH with the 3 screws.

  5. INSTALL FRONT WHEEL RH

    Torque:
    103 N*m  { 1049 kgf*cm, 76 ft.*lbf }
