HEADLIGHT CLEANER MOTOR INSTALLATION


  1. INSTALL HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY

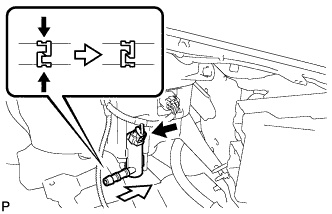

    1. A01ETWW

      Install the headlight cleaner motor and pump assembly.

    2. Connect the connector.

    3. Install the headlight cleaner hose with the clip as shown in the illustration.

  2. INSTALL FRONT BUMPER ASSEMBLY
