TRANSPONDER KEY AMPLIFIER INSTALLATION

PROCEDURE

1. INSTALL TRANSPONDER KEY COIL




   1.

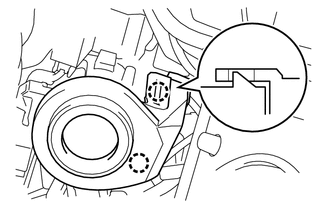

      Engage the 2 claws to install the transponder key coil.

   2. Connect the connector.

2. INSTALL UPPER STEERING COLUMN COVER

   Click here

3. INSTALL LOWER STEERING COLUMN COVER

   Click here
