FRONT SHOCK ABSORBER DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE FRONT SUSPENSION SUPPORT SUB-ASSEMBLY


    1. Remove the front suspension support sub-assembly from the front shock absorber with coil spring.

  2. REMOVE FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

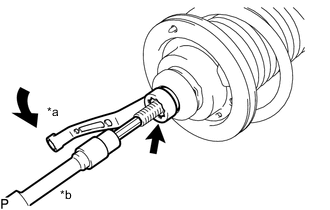

    1. A005HRYE01
      Text in Illustration
      *a Turn
      *b Hold

      Using a 6 mm hexagon socket wrench, hold the front shock absorber rod and loosen the front support to front shock absorber nut.

    2. For SST with Stopper Pins:

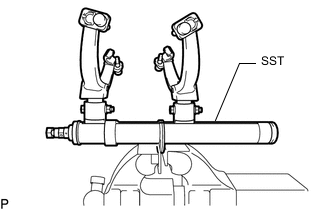

      1. A005KEWE07

        Secure SST in a vise.

        SST
        09727-30022   ( 09727-00010, 09727-00022, 09727-00031 )
      2. A005JOFE01
        Text in Illustration
        *a Correct
        *b Incorrect
        *c Parallel
        *d Not Parallel

        Attach the hooks of each SST arm across the diameter of the front coil spring.

        CAUTION:


        • Make sure that the hooks of the upper and lower arms are attached to the front coil spring so that the distance between the hooks is as large as possible.

        • Make sure that the arms of SST are parallel and attached to the front coil spring, and the number of front coil springs between the hooks on each side is the same.

        • Check that the claws of the hooks are securely attached to the front coil spring.

      3. A005GGAE01
        Text in Illustration
        *1 Stopper Pin
        *a Correct
        *b Incorrect

        Install the stopper pins to the hooks of SST.

        CAUTION:

        Make sure that the stopper pins are installed securely.

      4. Using SST, compress the front coil spring.

        CAUTION:


        • If the front coil spring buckles while using SST, stop immediately and reattach SST correctly.

        • Do not compress the front coil spring to the point where the coils touch each other.

        • Do not use an impact wrench.

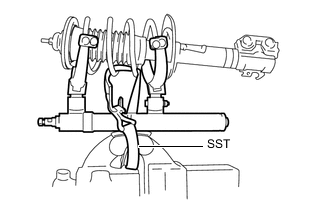

        • A005JWXE02

          If a stopper pin touches the front coil spring while using SST, remove the stopper pin and continue with the procedure. In this case, installing the coil spring stopper belt as shown in the illustration is recommended.

        SST
        09727-00110

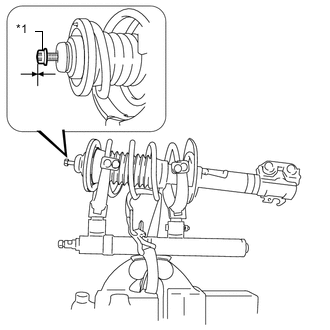

      5. A005HWGE01
        Text in Illustration
        *1 Front Support To Front Shock Absorber Nut

        Loosen the front support to front shock absorber nut to the position shown in the illustration and check that the front coil spring and front upper coil spring seat are loose.

        CAUTION:

        If the front coil spring and front upper coil spring seat are not loose, compress the front coil spring until they are loose.

      6. Check that the coil spring has become detached, and then remove the front support to front shock absorber nut.

        CAUTION:

        Do not remove the front support to front shock absorber nut if the coil spring is not free.

    3. For SST without stopper pins:


      1. A005LMFE06

        Secure SST in a vise.

        SST
        09727-30021   ( 09727-00010, 09727-00021, 09727-00031 )
      2. A005JOFE01
        Text in Illustration
        *a Correct
        *b Incorrect
        *c Parallel
        *d Not Parallel

        Attach the hooks of each SST arm across the diameter of the coil spring.

        CAUTION:


        • Make sure that the hooks of the upper and lower arms are attached to the coil spring so that the distance between the hooks is as large as possible.

        • Make sure that the arms of SST are parallel and attached to the coil spring, and the number of coil springs between the hooks on each side is the same.

        • Check that the claws of the hooks are securely attached to the coil spring.

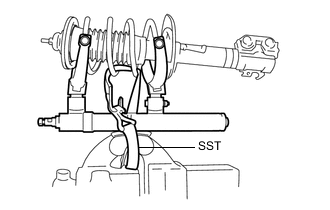

      3. A005GPYE01

        Using SST, compress the coil spring.

        CAUTION:


        • If the coil spring bends while using SST, stop immediately and reattach SST correctly.

        • Do not compress the coil spring to the point where the coils touch each other.

        • Do not use an impact wrench.

        Tech Tips

        Installing SST as shown in the illustration is recommended.

        SST
        09727-00110
      4. A005HWGE01
        Text in Illustration
        *1 Front Support To Front Shock Absorber Nut

        Loosen the front support to front shock absorber nut to the position shown in the illustration and check that the front coil spring and front upper coil spring seat are loose.

        CAUTION:

        If the front coil spring and front upper coil spring seat are not loose, compress the front coil spring until they are loose.

      5. Check that the coil spring has become detached, and then remove the front support to front shock absorber nut.

        CAUTION:

        Do not remove the front support to front shock absorber nut if the coil spring is not free.

  3. REMOVE FRONT COIL SPRING UPPER SEAT


    1. Remove the front coil spring upper seat with the strut mounting bearing and front spring bumper from the front shock absorber.

  4. REMOVE FRONT SPRING BUMPER


    1. Remove the front spring bumper from the front coil spring upper seat.

  5. REMOVE FRONT COIL SPRING UPPER INSULATOR


    1. Remove the front coil spring upper insulator from the front shock absorber.

  6. REMOVE FRONT COIL SPRING


    1. Remove SST from the front coil spring.

      Note

      Do not use an impact wrench. It will damage SST.

  7. REMOVE FRONT COIL SPRING LOWER INSULATOR


    1. Remove the front coil spring lower insulator from the front shock absorber.

  8. REMOVE STRUT MOUNTING BEARING

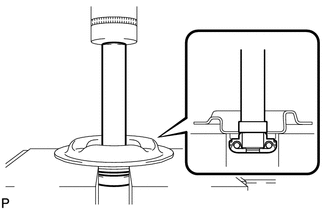

    1. A005KB3

      Using a brass bar and press, remove the strut mounting bearing from the front coil spring upper seat.
