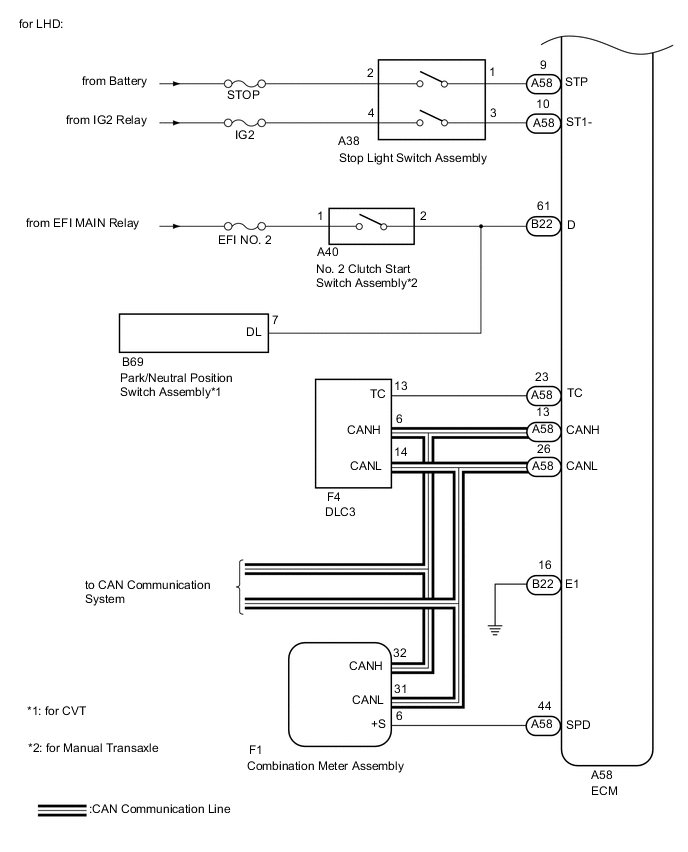

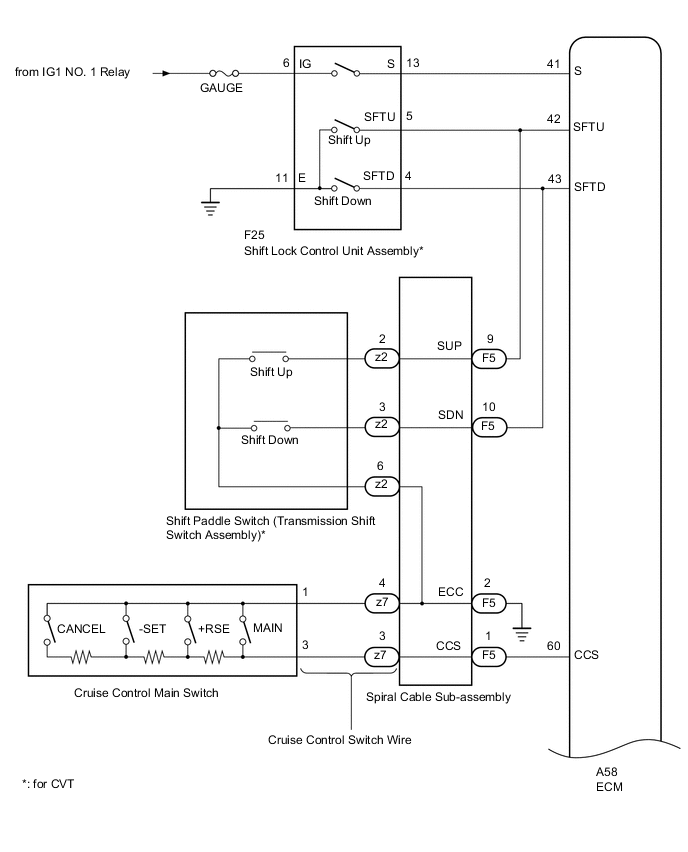

CRUISE CONTROL SYSTEM SYSTEM DIAGRAM

Communication Table

Sender	Receiver	Signal	Line
ECM	Combination Meter Assembly	Cruise control indicator light signal	CAN
Skid Control ECU	ECM	Vehicle stability control system operation signal	CAN
