HEADLIGHT ASSEMBLY REASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for both the RH and LH sides.

  • The procedure described below is for the LH side.

PROCEDURE


  1. INSTALL FRONT TURN SIGNAL LIGHT BULB


    1. Install the front turn signal light bulb to the front turn signal light socket.

  2. INSTALL FRONT TURN SIGNAL LIGHT SOCKET

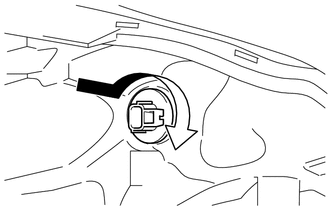

    1. A005IUX

      Turn the front turn signal light socket in the direction indicated by the arrow in the illustration to install it.

  3. INSTALL NO. 1 HEADLIGHT BULB (for Halogen Headlight)

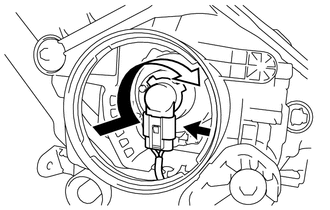

    1. A005HXO

      Turn the No. 1 headlight bulb in the direction indicated by the arrow in the illustration to install it.

      Note

      Do not touch the bulb glass with your fingers.

    2. Connect the connector.

    3. A005H7K

      Install the headlight socket cover.

  4. INSTALL DISCHARGE HEADLIGHT BULB (for HID Headlight)

    Click here

  5. INSTALL HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY (for HID Headlight)


    1. A005IIZ

      Turn the headlight light control ECU sub-assembly socket in the direction indicated by the arrow in the illustration to connect the headlight light control ECU sub-assembly socket.

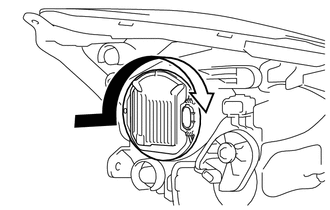

    2. A005HDE

      Turn the headlight light control ECU sub-assembly LH in the direction indicated by the arrow in the illustration to install it.
