МАСЛО И МАСЛЯНЫЙ ФИЛЬТР УЗЛЫ И ДЕТАЛИ
Информация добавлена 08-08-2017

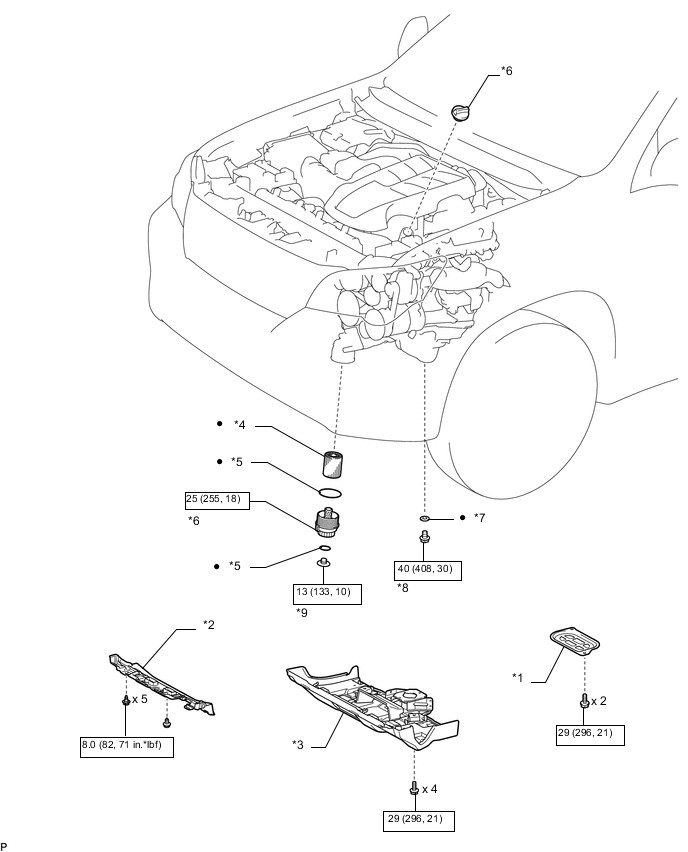

ILLUSTRATION
| *1 | ENGINE UNDER COVER SEAL | *2 | LOWER FRONT BUMPER COVER |
| *3 | NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY | *4 | OIL FILTER ELEMENT |
| *5 | O-RING | *6 | OIL FILTER CAP |
| *7 | GASKET | *8 | OIL PAN DRAIN PLUG |
| *9 | OIL FILTER DRAIN PLUG | - | |
 |
Specified torque: N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
