CAN COMMUNICATION SYSTEM SYSTEM DIAGRAM

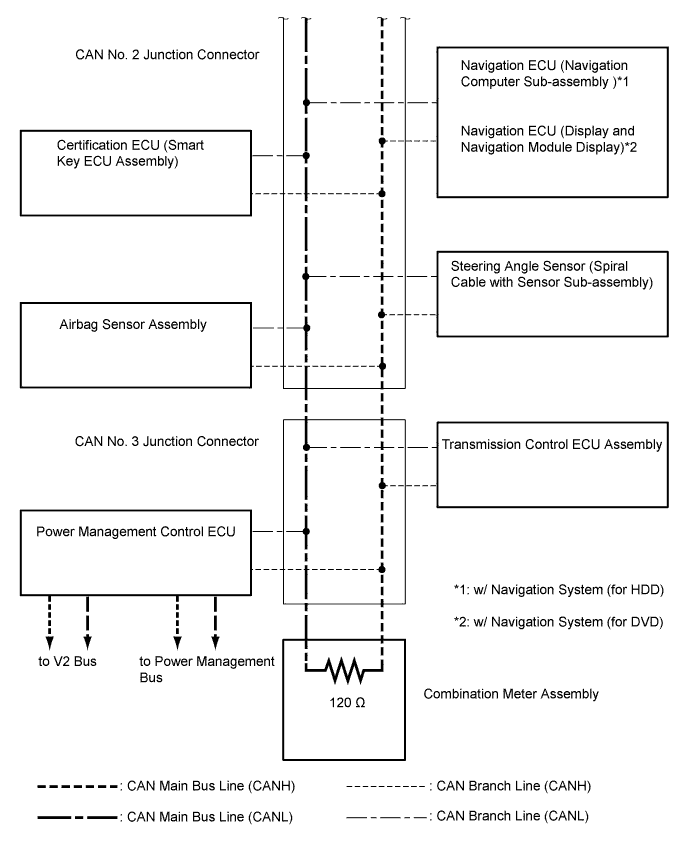

  1. V1 BUS (for LHD)

    A003VGKE02
    A003ZEHE01

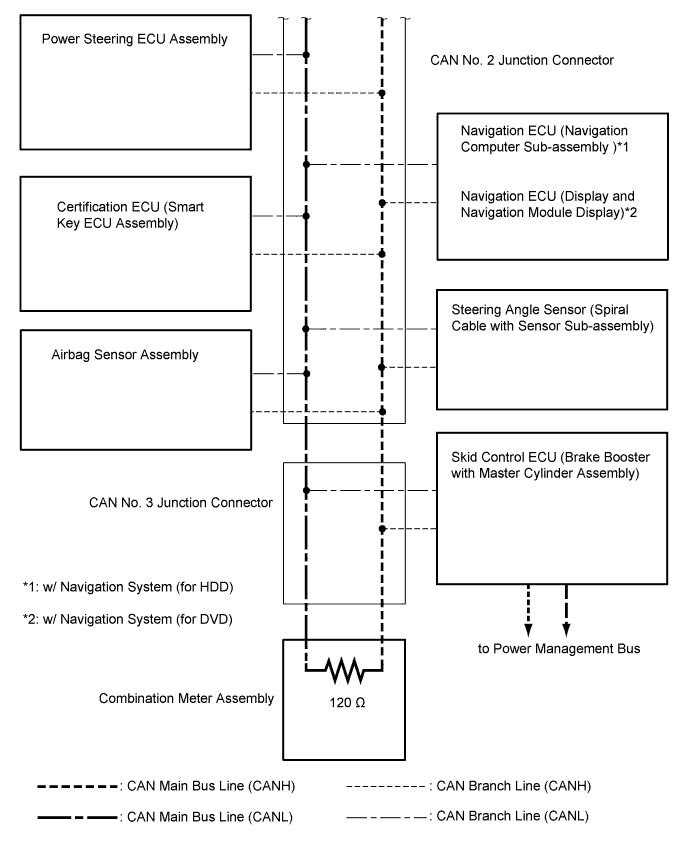

  2. V1 BUS (for RHD)

    A003YVZE02
    A003WHLE01

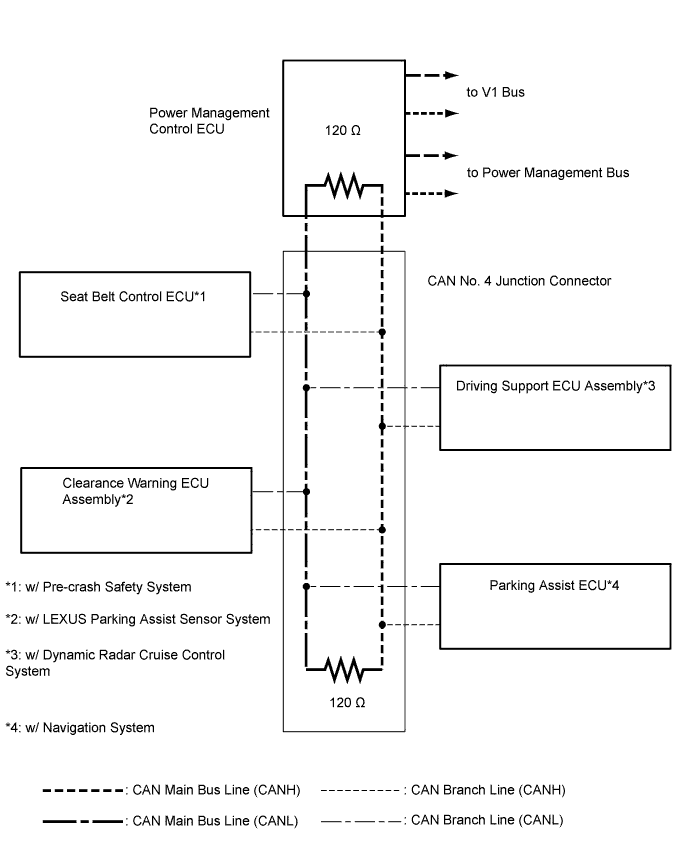

  3. V2 BUS

    A003W7TE06

  4. POWER MANAGEMENT BUS

    A003ZLNE01

  5. CAN MS BUS (w/ Seat Position Memory)

    A003WRDE02
