BACK DOOR GARNISH DISASSEMBLY


  1. REMOVE BACK DOOR GARNISH SIDE PROTECTOR LH


    1. A003T8ME01

      Remove the back door garnish side protector LH.

  2. REMOVE BACK DOOR GARNISH SIDE PROTECTOR RH

    Tech Tips

    Use the same procedure for the RH side and LH side.

  3. REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR


    1. A003UUGE01

      Remove the back door outside garnish protector.

  4. REMOVE BACK DOOR OUTSIDE GARNISH CLIP

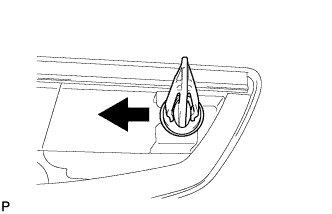

    1. A003UE4E02

      Remove the back door outside garnish clip.

      Tech Tips

      Use the same procedure for the RH side and LH side.
