DAYTIME RUNNING LIGHT ASSEMBLY REMOVAL


  1. REMOVE FRONT BUMPER ASSEMBLY


    1. A003TJ4E01
      Text in Illustration
      *1 Protective Tape

      Put protective tape around the front bumper assembly.

      Tech Tips

      Use the same procedure for the RH side and LH side.

    2. A003RVRE01

      Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

      Tech Tips

      Use the same procedure for the RH side and LH side.

    3. A003T5J

      Remove the clip.

      Tech Tips

      Use the same procedure for the RH side and LH side.

    4. A003T9S

      Remove the 4 bolts and 3 clips.

    5. A003TD1

      Remove the 6 screws.

    6. A003RJX

      Disengage the 6 claws and remove the front bumper assembly as shown in the illustration.

    7. Disconnect the 2 fog light connectors.

    8. w/ Headlight Cleaner System:


      1. Drain washer fluid Click here.

  2. REMOVE FOG LIGHT ASSEMBLY


    1. A003UW4

      Remove the screw.

    2. Disengage the 2 guides and remove the fog light assembly.

  3. REMOVE DAYTIME RUNNING LIGHT ASSEMBLY

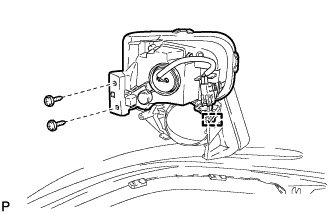

    1. A003UXG

      Remove the 2 screws.

    2. Disengage the pin and remove the daytime running light assembly.
