LIN COMMUNICATION SYSTEM, Diagnostic DTC:B1206

DTC Code DTC Name
B1206 P/W Master Switch Communication Stop

DESCRIPTION

This DTC is stored when LIN communication between the multiplex network master switch assembly and main body ECU (multiplex network body ECU) stops for 10 seconds or more.

DTC No. DTC Detection Condition Trouble Area
B1206 No communication between multiplex network master switch assembly and main body ECU (multiplex network body ECU) for 10 seconds or more.
  • Multiplex network master switch assembly

  • Main body ECU (multiplex network body ECU)

  • Instrument panel junction block assembly

  • Wire harness or connector

  • ECU-B2 fuse

WIRING DIAGRAM

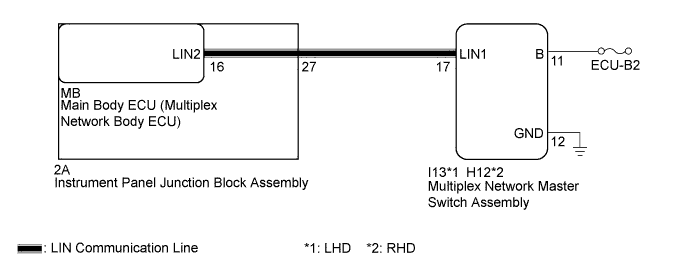

A003UUIE43

INSPECTION PROCEDURE

Tech Tips

When the main body ECU (multiplex network body ECU) has been replaced with a new part, and the cable from the negative (-) battery terminal is reconnected, the power switch will be on (IG). Also, when the battery has been removed and installed, the condition will be the same as it was before the battery was disconnected.

Note


  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

  • When using the intelligent tester to troubleshoot with the power switch off:

    Connect the intelligent tester to the DLC3, and turn the courtesy switch on and off at 1.5-second intervals until communication between the intelligent tester and vehicle begins.

PROCEDURE


  1. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY


    1. Remove the instrument panel junction block assembly.

    2. Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

    3. Measure the resistance according to the value(s) in the table below.

      Tech Tips

      This inspection is to check the LIN line in the instrument panel junction block assembly that connects the wire harness to the built-in main body ECU (multiplex network body ECU).

      Standard Resistance
      Tester Connection Condition Specified Condition
      2A-27 (LIN2) - MB-16 (LIN2) Always Below 1 Ω
      2A-27 (LIN2) - Body ground Always 10 kΩ or higher

    NG
    OK
  2. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - MULTIPLEX NETWORK MASTER SWITCH)


    1. Disconnect the I13*1 or H12*2 multiplex network master switch assembly connector.


      • *1: for LHD

      • *2: for RHD

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition

      2A-27 (LIN2) - I13-17 (LIN1)*1

      2A-27 (LIN2) - H12-17 (LIN1)*2

      Always Below 1 Ω
      2A-27 (LIN2) - Body ground Always 10 kΩ or higher

      • *1: for LHD

      • *2: for RHD


    NG
    OK
  3. CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH - BATTERY, BODY GROUND)

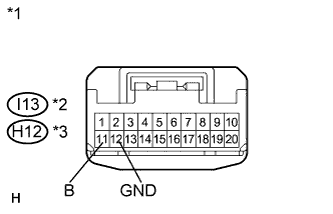

    1. A003TUYE11
      Text in Illustration
      *1

      Front view of wire harness connector

      (to Multiplex Network Master Switch Assembly)

      *2 for LHD
      *3 for RHD

      Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition

      I13-11 (B) - I13-12 (GND)*1

      H12-11 (B) - H12-12 (GND)*2

      Power switch off 11 to 14 V
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition

      I13-12 (GND) - Body ground*1

      H12-12 (GND) - Body ground*2

      Always Below 1 Ω

      • *1: for LHD

      • *2: for RHD


    NG
    OK
  4. REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY


    1. Replace the multiplex network master switch assembly Click here.


    NEXT
  5. CHECK DTC OUTPUT


    1. Clear the DTCs Click here.

    2. Recheck for DTCs.

      OK
      DTC B1206 is not output.

    NG
    OK
