LIN COMMUNICATION SYSTEM, Diagnostic DTC:B2287

DTC Code DTC Name
B2287 LIN Communication Master Malfunction

DESCRIPTION

This DTC is stored when there is an open, short or ECU communication malfunction between the power management control ECU and certification ECU (smart key ECU assembly).

DTC No. DTC Detection Condition Trouble Area
B2287 There is an open, short or ECU communication malfunction between power management control ECU and certification ECU (smart key ECU assembly).

  • Power management control ECU

  • Certification ECU (smart key ECU assembly)

  • Wire harness or connector

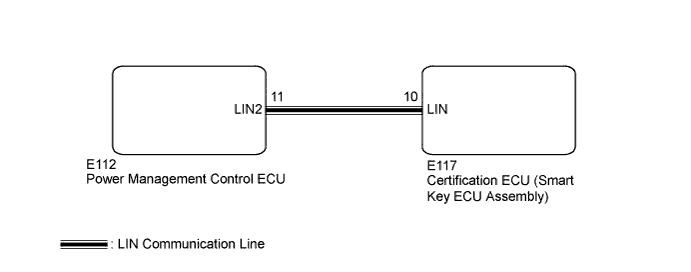

WIRING DIAGRAM

A003SFIE28

INSPECTION PROCEDURE

Note


  • If the certification ECU (smart key ECU assembly) is replaced, register the key.

  • When using the intelligent tester to troubleshoot with the power switch off:

    Connect the intelligent tester to the DLC3, and turn the courtesy switch on and off at 1.5-second intervals until communication between the intelligent tester and vehicle begins.

PROCEDURE


  1. CHECK DTC OUTPUT


    1. Clear the DTCs Click here.

    2. Recheck for DTCs.

      Tech Tips

      Check the both "Entry&Start" and "Power Source Control" DTCs.

      Result
      Result Proceed to
      Only DTC B2287 is output. A
      DTC B2287 and B2785 are output simultaneously. B

      Tech Tips

      When DTC B2287 and B2785 are output simultaneously, perform troubleshooting for DTC B2785 first.


    B

    GO TO DTC B2785 Click here

    A

  2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - POWER MANAGEMENT CONTROL ECU)


    1. Disconnect the E112 power management control ECU and E117 certification ECU (smart key ECU assembly) connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      E112-11 (LIN2) - E117-10 (LIN) Always Below 1 Ω
      E112-11 (LIN2) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  3. REPLACE POWER MANAGEMENT CONTROL ECU


    1. Replace the power management control ECU Click here.


    NEXT

  4. CHECK DTC OUTPUT


    1. Clear the DTCs Click here.

    2. Recheck for DTCs.

      OK
      DTC B2287 is not output.

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    OK

    END (POWER MANAGEMENT CONTROL ECU WAS DEFECTIVE)
