WIPER AND WASHER SYSTEM Rain Sensor Circuit

DESCRIPTION

The windshield wiper relay assembly receives a signal from the rain sensor to control the auto wiper system.

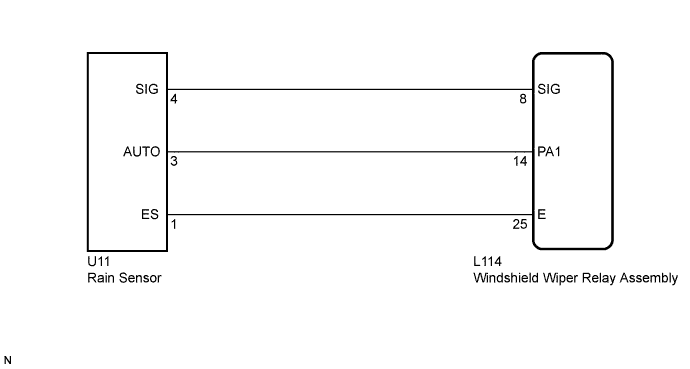

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - RAIN SENSOR)




   1. Disconnect the L114 windshield wiper relay assembly connector.

   2. Disconnect the U11 rain sensor connector.

   3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition L114-8 (SIG) - U11-4 (SIG) Always Below 1 Ω U11-4 (SIG) - Body ground Always 10 kΩ or higher L114-14 (PA1) - U11-3 (AUTO) Always Below 1 Ω U11-3 (AUTO) - Body ground Always 10 kΩ or higher L114-25 (E) - U11-1 (ES) Always Below 1 Ω U11-1 (ES) - Body ground Always 10 kΩ or higher




   NG

   REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK

2. INSPECT WINDSHIELD WIPER RELAY ASSEMBLY



   1.

      Text in Illustration

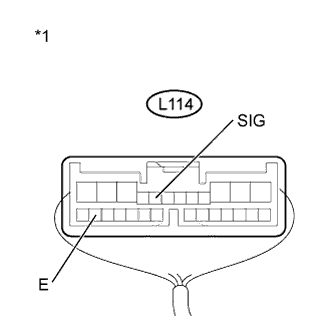

      *1	Component with harness connected (to Windshield Wiper Relay Assembly)

      Reconnect the windshield wiper relay assembly connector.

   2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition L114-8 (SIG) - L114-25 (E) Power switch on (IG) 11 to 14 V




   NG

   REPLACE WINDSHIELD WIPER RELAY ASSEMBLY Click here

   OK

3. INSPECT RAIN SENSOR



   1.

      Text in Illustration

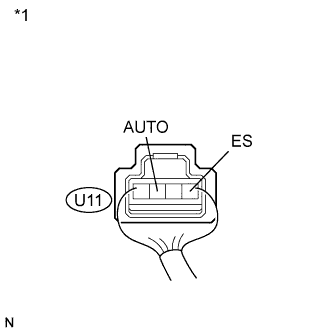

      *1	Component with harness connected (Rain Sensor)

      Reconnect the rain sensor connector.

   2. Connect an oscilloscope to the automatic light control sensor connector.

   3. Check for pulses.

      OK
      Tester Connection Condition Specified Condition U11-3 (AUTO) - U11-1 (ES) Power switch on (IG) Pulse generation




   NG

   REPLACE RAIN SENSOR Click here

   OK

   PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here
